Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Ceramic Lagging Sheet
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Lagging |
Certifications: |
ISO 9001, ISO 14001 |
Color: |
White |
Dielectric Strength: |
≥ 18 KV/mm |
Elongation At Break: |
≥ 200% |
Flame Retardant: |
Yes |
Hardness: |
9 Mohs |
Installation Method: |
Adhesive Or Mechanical Fastening |
Material: |
Ceramic |
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Lagging |
Certifications: |
ISO 9001, ISO 14001 |
Color: |
White |
Dielectric Strength: |
≥ 18 KV/mm |
Elongation At Break: |
≥ 200% |
Flame Retardant: |
Yes |
Hardness: |
9 Mohs |
Installation Method: |
Adhesive Or Mechanical Fastening |
Material: |
Ceramic |
Product Description

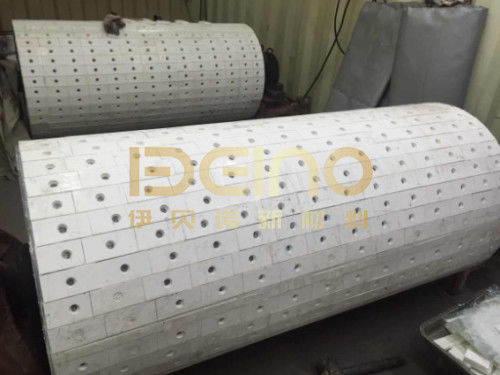

The surface of the rubber pulley lagging is embedded with alumina ceramic blocks. The rubber grooves between the ceramic blocks ensure drainage and mud discharge during operation and can provide a strong grip between the driving roller and the conveyor belt. Even in various harsh working conditions, such as muddy, wet, and high-wear environments, the lagging can solve the problem.
The adhesive surface of the rubber pulley lagging has a semi-vulcanized CN layer, which can form a bonding reaction with the cold vulcanized adhesive to achieve a strong adhesion between the rubber plate and the surface of the roller.
Product advantages
1. The high wear resistance of ceramics and the arrangement and combination of ceramics and rubber use the belt-driven roller to increase the friction coefficient of the roller, improve the belt traction, and prevent the belt from slipping.
2. The wear resistance of ceramics makes the service life of the driving drum more than ten times that of the rubber drum.
3. Under the same load, the belt's tension can be reduced and the service life of the belt can be prolonged.
4. The Rubber Pulley Lagging suits harsh conditions such as high wear, easy slippage, wet materials, etc.
5. Easy to install: minimize system downtime and help reduce transportation material costs.
Technical parameters
Main ingredient: NR/SBR
Specific gravity: 1.13+/-0.03g/m³
Hardness: 60+/-5 Shore A
Tensile strength: 17.5N/㎜²
Elongation at break: 450%
Dimension specification of ceramic rubber plate
| Description | Dimensions(mm) | Package |
| Ceramic rubber sheet | 12/15/16*1250*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1250*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1400*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1500*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1600*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1800*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*1900*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*2100*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*2100*500 | Plastic |
| Ceramic rubber sheet | 12/15/16*2500*500 | Plastic |
