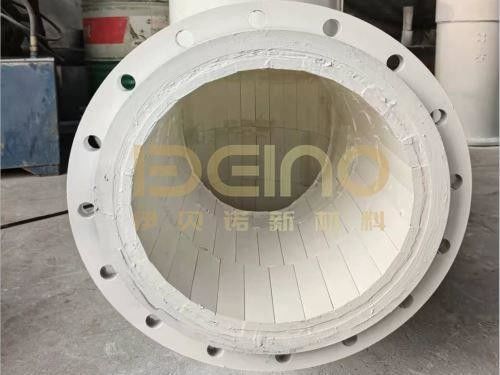

High Temperature Resistance Wear Resistant Ceramic Pipe Custom Sintered

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Wear Resistant Ceramic Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Sintered Wear Resistant Ceramic Pipe

,

Custom Sintered Wear Resistant Ceramic Pipe

Abrasion Resistance:
High
Chemical Stability:
Good
Corrosion:
Resistant
Cost:
Reasonable
Density:
3.65g/cm³
Flexural Strength:
350 MPa
Hardness:
9 Mohs
Installation Method:
Welding/Flange Connection
Resistance:
Wear Resistant
Surface:
Smooth
Thickness:
Customized
Wear Resistance:
Excellent
Abrasion Resistance:
High
Chemical Stability:
Good
Corrosion:
Resistant
Cost:
Reasonable
Density:
3.65g/cm³
Flexural Strength:
350 MPa
Hardness:
9 Mohs
Installation Method:
Welding/Flange Connection
Resistance:
Wear Resistant
Surface:
Smooth
Thickness:
Customized
Wear Resistance:
Excellent
High Temperature Resistance Wear Resistant Ceramic Pipe Custom Sintered

Product Description

Alumina ceramic wear tile is a sintered ceramic material composed of 92%-95% AI203. Products of different specifications and styles can be selected according to different use environments. The wear-resistant ceramic sheet has high wear resistance, and its application enables the lining of the product to be made very thin. In addition, alumina cylindrical linings and sheet or very small mosaic linings can also be used in pipelines. Alumina ceramic wear tile can be comprehensively applied to the lining of large equipment.



Product Features

Alumina ceramic wear tiles are made of alumina or zirconia after high-temperature calcination. Alumina is transformed into dense Alpha Alumina in a high-temperature environment. Due to its special crystal structure, it becomes extremely hard and the hardness is second only to diamond.



Due to the lightweight and strong wear resistance of the wear-resistant ceramic sheet, the weight of the equipment can be reduced and the characteristics of high strength and high toughness can be exerted. Through the integrated design, it can be easily replaced and installed.



The scope of the application

Alumina ceramic wear tiles are widely used, mainly in steel, cement, thermal power, coal, ports, machinery, mining, chemical coal transportation, pulverization, ash discharge and dust removal systems, and other mechanical equipment with large wear. Our company produces wear-resistant ceramic tubes, wear-resistant ceramic liners, ceramic drum encapsulation, and other product series that can be selected according to the different working conditions of the on-site equipment and customer needs.

High alumina ceramic tiles .jpgCeramic rubber composite liner.jpgDovetail Ceramics.jpg

Installation process

Direct-adhesive type: The direct-adhesive type is simple to construct and install, is not restricted by the size of the pipe diameter, and has a lower cost. It is suitable for large-area construction of on-site equipment. The ceramic sheet adhesive is directly pasted on the metal surface of the equipment. The adhesive is used for bonding steel and ceramics. It has high strength and good toughness. It can be cured at room temperature and has excellent heat resistance and aging resistance. It can run for a long time under the operating temperature of -50℃~350℃ without aging or falling off. It can meet the needs of most anti-wear projects. It can be used in powder exhausters, powder separators, dust removal pipes, coarse and fine powder separators, and coal mills. Outlet pipe, cyclone, etc.



Stud welding type: ceramic stud welding and adhesive double fixation make it not easy to fall off and resistant to high temperatures of 750℃. The welding type is to fix the ceramic on the steel part through the stud welding process and at the same time cooperate with the glue to achieve the double insurance effect. The product can operate stably under harsh working conditions such as high temperatures and high impact and can be applied to hot air ducts, flue walls, etc.



Steel rod-wearing dovetail ceramic: the process of wearing dovetail steel parts is more complicated. The steel rod is welded parallel to the steel plate to form a dovetail groove, and then the dovetail wear-resistant ceramic piece is inserted into the dovetail card groove. This method can withstand high temperatures below 1000°C and is particularly suitable for dynamic equipment such as fan impellers, waste heat power generation pipelines in cement plants, and dust removal pipelines.



Ceramic rubber integrated vulcanization: The combination of ceramic rubber vulcanization, adhesive, and bolts has strong impact resistance. It is suitable for impact and abrasion of bulk materials below 120℃. This process is divided into the three-in-one ceramic liner, the two-in-one ceramic + rubber to form a wear-resistant layer, and the three-in-one ceramic + rubber + steel plate. The back of the steel plate is equipped with fixed bolts, which is convenient for construction and replacement. It is generally used in hoppers and chutes, coal hoppers, coal pipes, etc.



Delivery and logistics

1. Our products are mainly customized products, and there is no stock. The general production cycle is about 25-45 days.

2. The samples are customized products and the delivery time is 7-15 days

3. The transportation is mainly by sea, and small items can be transported by air.

4. If you need customs clearance, please inform us in advance before the shipment

5. There are wooden boxes and iron shelves for packaging, and the packaging method is selected according to the weight and structure of the product.
