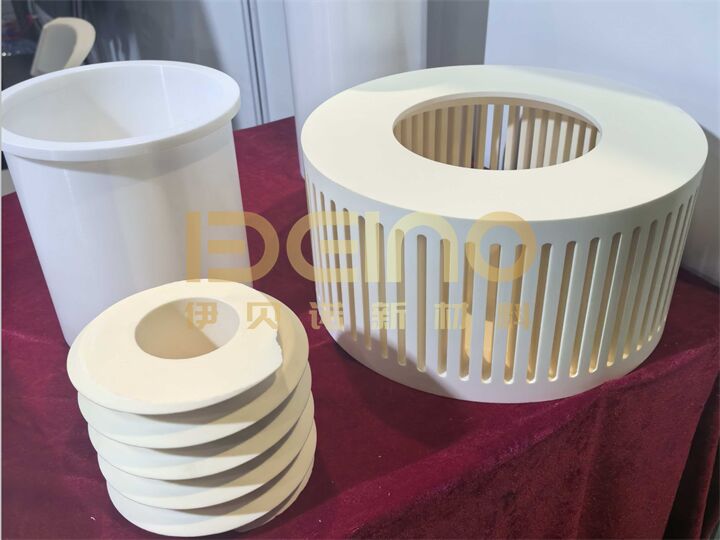

Wear Resistant Alumina Ceramic Classifier Wheel for Air Jet Mill
Product description
In the ultrafine powder processing industry, the stability of the classification system directly affects the particle size and purity of the final product. This is especially true in applications such as lithium battery materials and electronic ceramic powders, where control of metal contamination is extremely stringent. Traditional metal classifying wheels are prone to wear after prolonged operation and may introduce metallic impurities. Therefore, an increasing number of airflow milling machines are adopting ceramic classifying wheels as an alternative.
Ceramic classifying wheels are typically manufactured from a single piece of high-purity alumina or zirconium oxide. Ceramic itself has high hardness and good wear resistance, maintaining a low wear rate even under high-speed airflow impact and powder friction. This is particularly important when processing lithium battery cathode materials, as the material itself requires high purity, and any metallic impurities can affect the final performance.
In actual use, the material enters the classification zone with the airflow, and the high-speed rotation of the classifying wheel creates a centrifugal force field. Finer particles pass through the classifying wheel and enter the collection system, while coarser particles return to the grinding zone for further grinding. This process requires the classifying wheel to maintain dimensional stability over a long period; otherwise, the classification accuracy will gradually decrease. Ceramic materials, due to their low wear, more easily maintain stable classification results.
Compared to metal classifiers, ceramic classifiers offer another advantage: a smoother surface. Powder is less likely to adhere to the wheel surface, reducing material blockage and improving equipment efficiency. For powder processing plants requiring continuous production, this significantly reduces downtime for cleaning.
From a maintenance perspective, while ceramic classifiers have a slightly higher initial cost, their longer lifespan results in lower overall operating costs. Many users have found that replacement cycles are significantly extended and equipment operation is more stable after switching to ceramic classifiers.
Currently, these ceramic classifiers are widely used in classification systems for lithium-ion battery cathode materials, lithium iron phosphate, ternary materials, electronic ceramic powders, and fine chemical powders. The size and structure of the classifier can be customized to match various air jet mills, depending on the equipment model.
Product parameters
| Parameter |
Specification |
Unit |
Notes |
| Material |
High-purity Alumina Ceramic |
– |
≥ 99% Al₂O₃ |
| Hardness |
≥ 15 Mohs |
– |
Excellent abrasion resistance |
| Density |
3.8–3.9 |
g/cm³ |
– |
| Fracture Toughness |
4–5 |
MPa·m^0.5 |
– |
| Operating Temperature |
≤ 1200 |
°C |
Suitable for continuous operation |
| Maximum Rotational Speed |
≤ 3600 |
RPM |
Depends on the air jet mill model |
| Wheel Diameter |
150–400 |
mm |
Customizable |
| Wheel Thickness |
10–30 |
mm |
Customizable |
| Particle Size Range |
1–100 |
μm |
Depends on classifier settings |
| Service Life |
3–5 times metal wheels |
– |
Under normal operating conditions |
Comparison: Alumina Ceramic Classifier Wheel vs Traditional Materials
| Feature |
Alumina Ceramic Classifier Wheel |
Traditional Metal/Other Materials |
Advantage |
| Material Hardness |
≥ 15 Mohs |
5–8 Mohs |
Ceramic is significantly harder, resists wear and abrasion |
| Wear Resistance |
Very high |
Moderate |
Reduces frequent replacements and downtime |
| Operating Temperature |
≤ 1200°C |
≤ 500°C |
Ceramic withstands high temperatures, suitable for heat-generating powders |
| Service Life |
3–5 times longer |
Standard |
An extended lifespan reduces operational costs |
| Particle Size Accuracy |
Stable and precise |
May degrade over time |
Ensures consistent milling quality |
| Maintenance Frequency |
Low |
High |
Less downtime and labor cost |
| Corrosion Resistance |
Excellent |
Poor |
Ceramic is resistant to chemical corrosion |
| Cost Efficiency |
Higher initial, lower long-term cost |
Lower initial, higher long-term cost |
Ceramic reduces overall maintenance and replacement costs |
| Contamination Risk |
Low |
Higher |
Ceramic is inert, avoiding material contamination |
Key Feature
High Wear Resistance: Alumina ceramic material resists abrasion, ensuring a long service life.
Precision Classification: Optimized design ensures accurate particle separation, improving product quality.
Corrosion & Heat Resistance: Ideal for materials that generate heat or contain reactive compounds.
Low Maintenance: Durable structure reduces replacement frequency and maintenance downtime.
Stable Performance: Maintains efficiency and accuracy even under continuous operation.
Advantages
Extended Lifespan: Compared to metal wheels, alumina ceramic wheels last 3–5 times longer.
Improved Milling Efficiency: Ensures consistent particle size, reduces material contamination, and improves output.
Cost-effective: Fewer replacements and reduced downtime save overall operational costs.
FAQ
Q1:What materials are compatible with this wheel?
A1:Suitable for powders like chemicals, minerals, and food additives. Avoid highly reactive chemicals that may corrode alumina.
Q2:How long is its lifespan?
A2: Typically, 3–5 times longer than traditional metal wheels under normal operating conditions.
Q3:Can it be customized for different air jet mills?
A3:Yes, we provide customized sizes and specifications to fit various air jet mill models.
Q4:Is it suitable for high-speed milling?
A4:Yes, the wheel is designed to handle high rotational speeds without performance loss.
Q5:How should I maintain the wheel?
A5:Minimal maintenance is required. Regular cleaning of powder residues is recommended to maintain accuracy.
