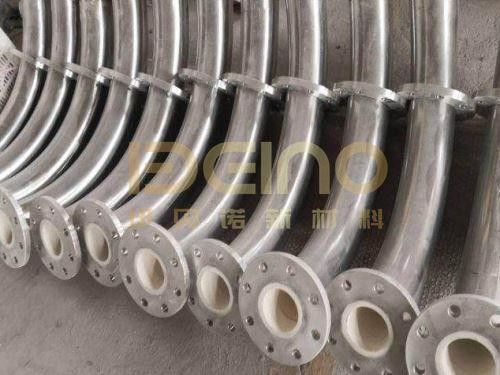

Anti Corrosion Ceramic Sleeve Lined Pipe Wear Resistant Linings

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Ceramic Sleeve Lined Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Anti Corrosion Ceramic Sleeve Lined Pipe

,

ASME Ceramic Sleeve Lined Pipe

,

Wear Resistant Linings ASME

Abrasion Resistance:
Excellent
Application:
Transportation Of Abrasive Materials
Durability:
High
Inner Diameter:
10mm-1200mm
Inner Lining Material:
Alumina Ceramic
Length:
1m-6m
Lining Thickness:
3-10mm
Outer Diameter:
20mm-1300mm
Pipe Material:
Carbon Steel
Warranty:
1 Year
Abrasion Resistance:
Excellent
Application:
Transportation Of Abrasive Materials
Durability:
High
Inner Diameter:
10mm-1200mm
Inner Lining Material:
Alumina Ceramic
Length:
1m-6m
Lining Thickness:
3-10mm
Outer Diameter:
20mm-1300mm
Pipe Material:
Carbon Steel
Warranty:
1 Year
Anti Corrosion Ceramic Sleeve Lined Pipe Wear Resistant Linings

Product Description

Wear resistant linings alumina ceramic composite pipes including straight pipes, elbows, tapered pipes, three-way pipes, etc. of various diameters. Through bonding, welding, inlaying, and other technologies, Wear resistant ceramic sheets, plates, bricks, etc. The material is compounded on the wear surface in the pipe, thereby forming an excellent wear-resistant layer.



Compared with the traditional metal pipe fittings, the wear-resistant linings composite ceramic pipe has higher wear resistance, which can increase the overall Wear resistance and anti-corrosion service life of the pipe fittings by several to several tens of times. Because the density of the wear-resistant linings aluminum oxide ceramics is only half that of the steel parts, the overall weight is greatly reduced, which reduces the engineering cost and maintenance, and repair costs and improves economic benefits.



All products are produced according to American standards ASME, ANSI, German standard DIN, Japanese standard JIS, domestic GB/T, SH, HG, JB, and other standards. Non-standard products can be processed and produced according to the technical drawings provided by users.

alumina ceramic linerliner ceramic

Technical Parameters

Items Specifications
Al2O3 ≥95% ≥ 99%
Density >3.8g/cm3 >3.83g/cm3
HV10 ≥1200 ≥1300
Rock Hardness HRA ≥85 ≥90
Bending Strength MPa ≥330 ≥340
Compression strength MPa ≥1200 ≥1300
Fracture Toughness KIc MPam 1/2 ≥4.0 ≥4.2
Volume wear ≤0.02cm3 ≤0.01cm3
Item Alumina content
Al2O3 ≥92% ≥95% ≥96% ≥99%
Na2O ≤0.4% ≤0.2% ≤0.1% ≤0.15%
K2O ≤1.06% ≤0.5% ≤0.54% ≤0.25%
Fe2O3 ≤0.01% ≤0.01% ≤0.01% ≤0.01%
SiO2 ≤4.7% ≤3.28% ≤2.5% ≤0.2%

Product Features

Good wear resistance: The inner ceramic layer of the Wear resistant ceramic tube is Wear resistant ceramic, and its hardness (HRA) is ≥88, its wear resistance is more than 10 times that of high-chromium Wear-resistant cast iron alloy pipe fittings, and has a long service life.

Corrosion resistance: Choose different Wear resistant ceramic materials, that have excellent anti-corrosion performance against different corrosive media, and are resistant to acid, alkali, salt, and other strong corrosive media and halogen salts.



Good high-temperature resistance performance: Wear-resistant ceramic itself can withstand high temperatures above 1700 degrees Celsius. Through reasonable design and the use of different composite methods, resistant ceramic pipe fittings can operate for a long time within the humidity range of -50°C to 800°C. Wear-resistant ceramic pipe products have High-cost performance, which can save the cost and time of maintenance and replacement of materials. Lightweight, convenient transportation and installation.



Application Industry

The wear-resistant lining ceramic composite pipe has wear resistance, corrosion resistance, and heat resistance, so it can be widely used in electric power, metallurgy, mining, coal, chemical, port, cement, machinery, sand washing, lithium battery, and other industries as transporting sand, stone, Grinding granular materials and corrosive media such as coal powder, ash slag, aluminum liquid, etc., are ideal anti-corrosion pipelines for material transportation and pneumatic transportation.



  •
