Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Ceramic Sleeve Lined Pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Color: |
White |
Density: |
3.65g/cm³ |
Durability: |
High |
Hardness: |
HRA85-90 |
Impact Resistance: |
Good |
Lining Material: |
Alumina Ceramic |
Lining Thickness: |
3-10mm |
Material: |
Ceramic |
Pipe Diameter: |
50-1200mm |
Wall Thickness: |
3mm-10mm |
Color: |
White |
Density: |
3.65g/cm³ |
Durability: |
High |
Hardness: |
HRA85-90 |
Impact Resistance: |
Good |
Lining Material: |
Alumina Ceramic |
Lining Thickness: |
3-10mm |
Material: |
Ceramic |
Pipe Diameter: |
50-1200mm |
Wall Thickness: |
3mm-10mm |
Product Description

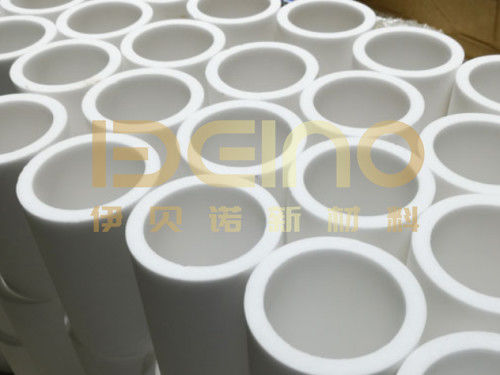

The wear resistant ceramic pipe for lithium batteries is mainly 304 stainless steel lining. The lithium battery transportation pipeline changes the flow direction of the elbow because of the airflow. The wear problem of the elbow is particularly serious. The wear resistant ceramic lining can effectively improve the wear problem.
Product parameters
| Items | Specifications | |
| Content of alumina | ≥92% | ≥95% |
| Density | ≥3.6 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥82HRA | ≥85HRA |
| Impact strength | ≥1200 MPA | ≥1500 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1150HV10 | ≥1200HV10 |
| Bending Strength | ≥290MPa | ≥330MPa |
Production equipment introduction
The company has kiln production lines, vulcanizers, CNC cutting machines, lathes, punching machines, milling machines, sawing machines, radial drills, forklifts, gas-shielded welding, intermediate frequency pipe benders, and other production and processing equipment, forming a certain scale of production capacity, lithium batteries The steel parts and equipment for the Wear resistant ceramic pipe for lithium battery adopt the integral hot bent seamless steel pipe process.
Introduction of the production process
The company has advanced wear resistant ceramic production lines, isostatic pressing, automatic presses, vulcanizers, spray drying towers, etc., as well as steel structure production lines. The ceramics of Wear resistant ceramic pipe for lithium batteries adopt isostatic pressing technology.
Product certification and product testing
Product design, manufacturing, and installation services are fully integrated into the ISO quality management system. Every process has a quality inspector for inspection. The company will sample the finished products and pass the performance inspection before leaving the factory.
Packing and shipping
1. According to the product size, the company has special personnel to design and customize the packaging according to the drawings.
2. The packaging forms include fumigation-free wooden boxes and iron shelf packaging. The packaging method is selected according to the weight and structure of the product.
3. The outside of the product or wooden box will be packaged with bubble film or cling film, in order to prevent rust and not be wet by rain
4. The label will be affixed on the outside of the package.
5. The relevant inspection report or shipping list of the goods will be sent with the goods or sent to customers in electronic form.
