Alumina Ceramic Lined Rotary Discharge Valve for Abrasive Powder Conveying

Why Traditional Rotary Valves Wear Out Quickly in Abrasive Powder Systems

In many pneumatic conveying systems, the rotary discharge valve is often one of the earliest components to experience severe wear. This problem becomes especially common when handling abrasive materials such as silica powder, cement powder, fly ash, lithium battery materials, mineral powder, and other hard particles.

Traditional cast steel or alloy rotary valves may initially operate normally, but continuous exposure to abrasive powders gradually enlarges the internal clearance between the rotor and valve body. Once wear becomes serious, problems such as air leakage, unstable feeding, pressure fluctuation, material accumulation, and unexpected shutdowns begin to appear.

For industries that rely on continuous conveying systems, these failures not only increase maintenance frequency but also directly affect production efficiency and operating costs.

To address these problems, ceramic-lined rotary discharge valves are increasingly being used in severe wear applications where ordinary metal valves cannot maintain long-term stability.

Product Description

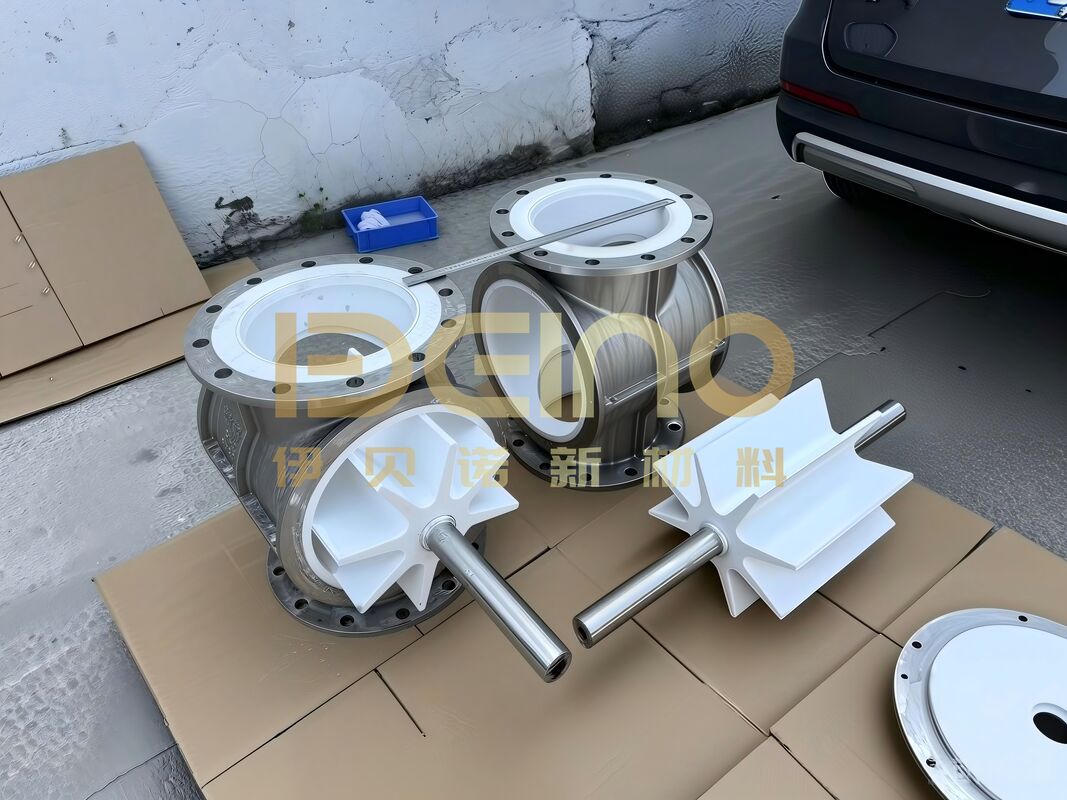

This alumina ceramic-lined rotary discharge valve is specially designed for highly abrasive powder conveying systems. The valve housing and rotor are internally lined with high-purity alumina ceramic, forming a complete wear-resistant structure inside the valve.

Unlike ordinary metal rotary valves that rely only on steel hardness for wear resistance, the ceramic-lined structure directly protects the areas exposed to continuous material erosion. The ultra-hard ceramic surface significantly reduces wear caused by high-speed powder impact and friction during long-term operation.

The valve is widely used in pneumatic conveying systems handling:

• Lithium battery powder
• Fly ash
• Cement powder
• Silica powder
• Mining powder
• Chemical powders
• Other abrasive bulk materials

For industries requiring stable airlock feeding and long equipment service life, ceramic-lined rotary valves provide a more reliable solution under severe abrasion conditions.

Why More Industries Are Switching to Ceramic Lined Valves

In many abrasive conveying environments, the actual problem is not simply valve replacement, but the chain reaction caused by wear.

Once the rotor and housing begin to wear:

• Air leakage increases
• Feeding accuracy becomes unstable
• System pressure fluctuates
• Energy consumption rises
• Dust leakage becomes more serious
• Shutdown maintenance becomes frequent

In lithium battery material conveying systems, another important concern is metal contamination generated by worn metal components. As battery manufacturers place increasingly strict requirements on contamination control, traditional metal valves are gradually becoming unsuitable for certain powder handling processes.

Ceramic-lined rotary valves solve these problems by using ultra-hard alumina ceramic to protect the main wear areas directly exposed to abrasive materials. Compared with ordinary alloy steel structures, alumina ceramic offers significantly higher hardness, better erosion resistance, smoother surfaces, and improved long-term dimensional stability.

This helps maintain sealing performance and stable conveying efficiency over longer operating periods.

Product Structure and Manufacturing Features

Composite Structure Design

The valve body is made of CF8 stainless steel, providing strong pressure resistance and high mechanical strength. It can withstand normal working pressures such as 1.0MPa and 1.6MPa while maintaining structural stability during continuous operation.

The internal rotating cavity, rotor, flow channel, and other material-contact areas are fully lined with high-purity alumina ceramic. The valve shaft is manufactured from 304 stainless steel for improved corrosion resistance and durability.

Key wear areas such as the valve core, valve seat, and flow channel corners are specially reinforced to balance:

• Structural strength
• Wear resistance
• Corrosion resistance
• Long-term sealing stability

Advanced Inner Liner Fixing Technology

Unlike ordinary patch-type ceramic structures, this valve utilizes an integrally sintered ceramic bushing design with a seamless internal ceramic lining structure.

The ceramic layer is tightly fixed using both mechanical positioning and high-temperature bonding technology, helping prevent loosening or detachment under continuous material impact.

The smooth, seamless ceramic surface also reduces material accumulation inside the valve, minimizing dead corners and lowering friction resistance during conveying.

Excellent Sealing Performance

The sealing pair adopts a ceramic-to-ceramic sealing structure combined with high-precision machining technology.

Compared with ordinary metal sealing surfaces that gradually lose precision after wear, ceramic sealing structures maintain more stable clearance over longer operating periods.

This helps achieve:

• Better airlock performance
• Reduced dust leakage
• Stable system pressure
• Bidirectional sealing capability
• Improved conveying efficiency

The valve is particularly suitable for closed pneumatic conveying systems requiring stable airflow control and reduced environmental dust leakage.

Lower Maintenance Frequency and Operating Cost

Under continuous abrasive conveying conditions, ordinary metal valves often require frequent maintenance due to rapid rotor and chamber wear.

The ceramic-lined structure significantly reduces wear on vulnerable internal components, helping extend replacement intervals and reduce unplanned shutdowns.

Because the ceramic rotor and ceramic bushing can be replaced individually, maintenance becomes more convenient, and operating costs can be reduced over the long term.

For many plants operating continuous conveying systems, reducing shutdown frequency is often more valuable than simply extending part life.

Typical Application Industries

This ceramic-lined rotary discharge valve is widely used in:

• Lithium battery material conveying systems
• Cement plants
• Fly ash handling systems
• Silica powder conveying
• Mining and mineral powder processing
• Chemical powder conveying
• High-abrasion pneumatic conveying systems
• Dust collection and airlock feeding systems

Product Features

• Full ceramic wear protection for rotor and valve body
• Excellent resistance to abrasive powder erosion
• Stable airlock sealing performance
• Reduced material sticking inside the valve
• Lower maintenance frequency
• Suitable for continuous conveying systems
• Corrosion-resistant stainless steel structure
• Customizable size, pressure, and drive configuration

FAQ

Q1: What are the specific materials and configurations of this ceramic unloading valve? What are the differences?

A1: The standard configuration uses a CF8 stainless steel valve body and a 304 stainless steel valve shaft. The rotor and rotating chamber are made entirely of 95-99% high-purity alumina ceramic. Unlike ordinary plated ceramic valves, this model features a one-piece cast ceramic bushing with no seams, making it resistant to erosion and preventing ceramic chipping. It is more durable than ordinary plated ceramic valves and metal wear-resistant valves.

Q2: What materials are it suitable for conveying? Can it handle highly abrasive powders?

A2: It is specifically designed for highly abrasive powders and granular materials, such as lithium battery powder, fly ash, mineral powder, sand, and corrosive chemical powders. It has high hardness, is erosion-resistant, and is not afraid of long-term impact from hard particles. It is also resistant to acid and alkali corrosion and can be used with both dry and wet materials.

Q3: Will the ceramic part be prone to cracking or chipping?

A3: No. The product uses an integrated sintered ceramic bushing, combined with mechanical slots and high-temperature adhesive for double fixation, resulting in a stable structure. Under normal operating conditions, it will not crack without impact from hard objects, unlike ordinary patch ceramic valves, which are prone to detachment and leakage. It is suitable for long-term continuous operation without shutdown.

Q4: What is the high-temperature resistance? Can it be used in high-temperature dust conditions?

A4: The normal long-term operating temperature is ≤300℃. The ceramic will not soften, deform, or oxidize at high temperatures. The stainless steel valve body has excellent high-temperature resistance and can be used directly in high-temperature powder conditions in power plants and kilns.
