ISO Ceramic Lined Rubber Hose Wear Resistant Flexible In Electric Power

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Ceramic Lined Rubber Hose

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

ISO Ceramic Lined Rubber Hose

,

Flexible Ceramic Lined Rubber Hose

,

ISO Ceramic Lined Hose

ISO Ceramic Lined Rubber Hose Wear Resistant Flexible In Electric Power

Product introduction

Compared with ordinary natural rubber hose, the Ceramic Lined Hose is more wear-resistant and has a longer service life, and is currently the product with better wear resistance in the market. It also increases the wear resistance coefficient of the hose. It is widely used in electric power, steel mills, power plants, paper mills, and sand suction ships. In addition, it is more flexible than ordinary hose and can be bent into the shape you want. Easy and fast installation, no complicated steps are required, saving time and effort.



Product features:

1. Good high temperature resistance: wear-resistant ceramic itself can withstand high temperatures above 1400 degrees Celsius. It is reasonable in design. Using different composite methods, the Ceramic Lined Hose is suitable for continuous and uninterrupted working environments, and will not decrease pipe usage time due to temperature rise.

2. Good flexibility: It has good flexibility, the product is easy to bend, and the cost performance is high, which can save the cost and time of maintenance and material replacement.



Product structure

The ceramic-lined flexible hose is manufactured by a high-tech production process, a self-propagating high-temperature vulcanization synthesis process. The tube is composed of corundum ceramics, a transition layer, and glue line reinforcement from the inside to the outside. The lined ceramics are uniform, dense, and smooth, and the running resistance is small.

Wear resistance: wear resistance is 10 times that of ordinary steel pipes and more than 20 times that of ordinary rubber pipes

Flexible: the cylindrical sheet-shaped ceramic lining has large-angle bending, soft and flexible

Installation connection method: flange, quick connector, and other connection methods

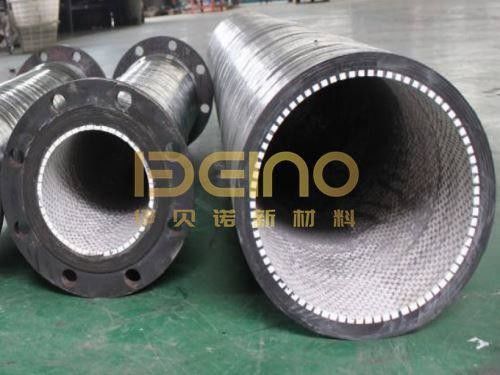

ceramic lined hose_Ceramic Lined Rubber Hose

Specifications and technical parameters

DN(mm) R(mm) L(m) P(MPa) TEMP()
25 500 10 1-2.5 100
32 640 10 1-2.5 100
38 760 10 1-2.5 100
42 840 10 1-2.5 100
52 1020 10 1-2.5 100
68 1360 10 1-2.5 100
76 1520 10 1-2.5 100
83 1630 10 1-2.5 100
95 1900 10 1-2.5 100
102 2040 10 1-2.5 100
152 3040 10 1-2.5 100
194 3880 10 1-2.5 100
245 4900 10 1-2.5 100
299 5980 10 1-2.5 100

Requirements for technical parameters of rubber-lined porcelain hose

Lining material: 95% lead oxide ceramic

Outer tube material: EPDM rubber

Ceramic size: diameter 7mm, thickness 3mm ceramic cylinder

Rockwell hardness≥85HRA

Density≥3.6g/cms

Cold pressed strength: ≥850MPa

Bending strength: ≥290MPa

Wear resistance: (P=76Nn=800rpm/min t=30min)≤0.0002g



Why choose us?

1. Product customization: All Ibeno products can be customized according to the drawings or samples provided by customers.

2. We have 15 years of industry and on-site installation experience in the field of wear-resistant ceramics, providing one-stop service from production to installation, and can provide product design, research and development, production, processing, and other services according to customer needs. With rich construction experience, we can provide customers with a variety of wear-resistant ceramic products

3. Pay attention to product upgrades: Ibeno pays attention to the continuous upgrading of its technology, and new equipment and new technologies enhance product competitiveness.

4. The company will design the most cost-effective equipment anti-wear solution according to your industry, equipment, and on-site working conditions (conveying materials, particle size, flow, pressure).

5.5S after-sales service: the company's standard after-sales and order-based management provide customers with timely and comprehensive services
