Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Ceramic Sleeve Lined Pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Inner Diameter: |
10mm-1000mm |
Installation Method: |
Flange Connection |
Length: |
1m-12m |
Lining Material: |
Alumina Ceramic |
Material: |
Ceramic |
Outer Diameter: |
20mm-1200mm |
Pipe Material: |
Carbon Steel |
Size: |
1 Inch - 24 Inch |
Standard: |
GB, ASTM, ASME, DIN, JIS |
Wear Resistance: |
High |
Inner Diameter: |
10mm-1000mm |
Installation Method: |
Flange Connection |
Length: |
1m-12m |
Lining Material: |
Alumina Ceramic |
Material: |
Ceramic |
Outer Diameter: |
20mm-1200mm |
Pipe Material: |
Carbon Steel |
Size: |
1 Inch - 24 Inch |
Standard: |
GB, ASTM, ASME, DIN, JIS |
Wear Resistance: |
High |
Product Description

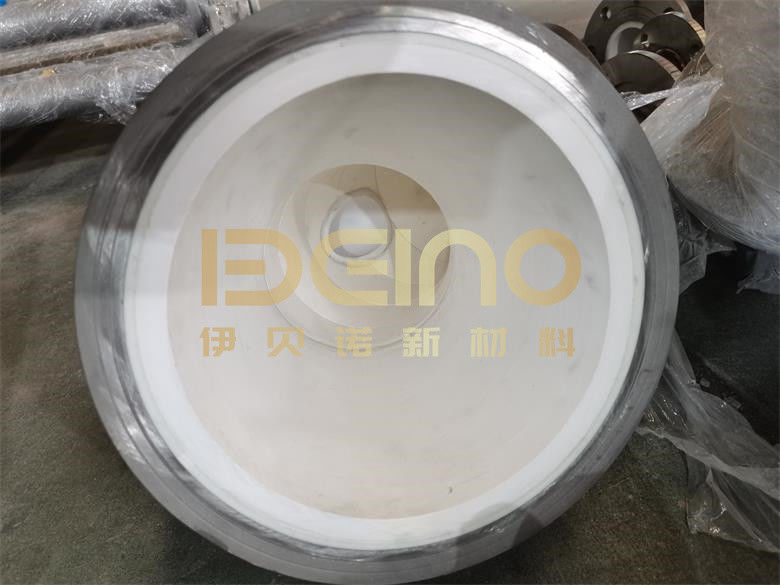

Wear resistant ceramic steel pipes are widely used due to high-temperature wear resistance and corrosion resistance, which are easy to replace and install. Its service life is much longer than traditional steel pipes, which greatly reduces the production cost of enterprises.
Ceramic technical parameters
| Items | Specifications | |
| Content of alumina | ≥92% | ≥95% |
| Density | ≥3.6 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥82HRA | ≥85HRA |
| Impact strength | ≥1200 MPA | ≥1500 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1150HV10 | ≥1200HV10 |
| Bending Strength | ≥290MPa | ≥330MPa |
Product advantages
1. Super wear resistance: Wear-resistant ceramic steel pipes lined with ceramic Vickers hardness up to 1800, used for powder transportation, wear resistance is 20 times that of ordinary carbon steel
2. High-temperature resistance and no falling off: The ceramic sheet is welded to the inner wall of the equipment through a stud welding process to form a strong anti-wear layer, which can ensure that the ceramic does not fall off under long-term high-temperature operation
3. Convenient transportation and installation: relatively light in weight, easy to transport and install
Product certification
The wear-resistant ceramic steel pipe products have passed the ISO90001 quality system certification and the ISO14000 environmental management system certification. The products are included in the ISO quality management system from R&D, design, production, and installation. Strict quality inspection is carried out before the products leave the factory to ensure that the quality of the products is 100%.
Factory equipment introduction
The company has advanced wear-resistant ceramic production lines, isostatic pressing, automatic presses, vulcanizing machines, spray drying towers, etc., and steel structure production lines.
