Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Ceramic Lagging Sheet
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Pulley Lagging |
Benefits: |
Reduce Belt Slippage And Increase Traction |
Certifications: |
ISO 9001, ISO 14001 |
Chemical Resistance: |
Excellent |
Color: |
White |
Flexibility: |
Flexible |
Hardness: |
9 Mohs |
Installation Method: |
Adhesive Or Mechanical Fastening |
Length: |
Customization |
Material: |
Ceramic |
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Pulley Lagging |
Benefits: |
Reduce Belt Slippage And Increase Traction |
Certifications: |
ISO 9001, ISO 14001 |
Chemical Resistance: |
Excellent |
Color: |
White |
Flexibility: |
Flexible |
Hardness: |
9 Mohs |
Installation Method: |
Adhesive Or Mechanical Fastening |
Length: |
Customization |
Material: |
Ceramic |
Product Description

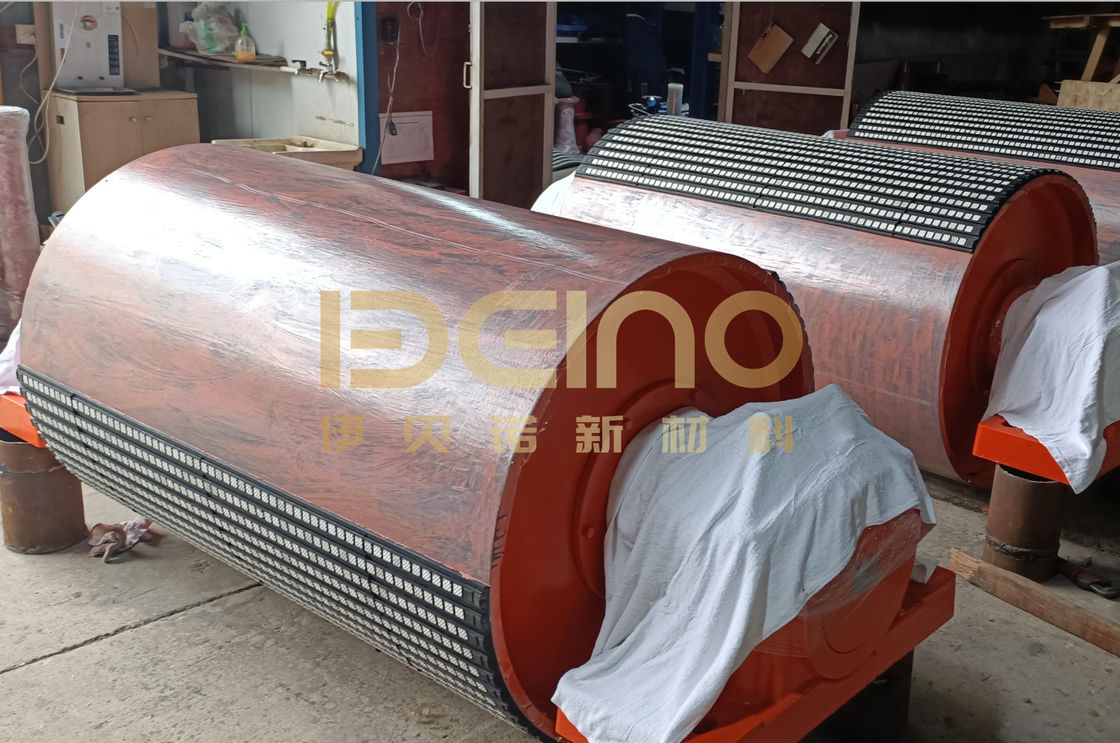

Compared with the traditional rubber encapsulation, the friction coefficient of the Roller ceramic rubber sheet plate of the drum is 3 times that of the traditional rubber encapsulation.
Alumina ceramic technical parameters
Items | Specifications |
Content of alumina | ≥92% |
Density | ≥3.6 g/cm3 |
Rockwell A hardness | ≥82HRA |
Impact strength | ≥1200 MPA |
Fracture toughness | ≥3.8MPa·m1/2 |
Vickers hardness | ≥1150HV10 |
Bending Strength | ≥290MPa |
Technical parameters of vulcanized rubber
Items | Specifications |
Pull apart strength | ≥12MPa |
Pull apart prolongation | 250% |
Shore hardness | 55 65 |
Permanent deform | ≤24% |
The shared stress between the ceramic and rubber | ≥3.0MPa |
Temperature resistance | ≤100℃ |
The aging life of rubber | ≥15 years |
Rubber and ceramic peel strength | ≥30Kgf/mm2 |
Peel strength between rubber and equipment body | ≥12 Kgf/mm2 |
Rubber thickness | 8mm |
Product testing
The roller ceramic rubber sheet is fully integrated into the ISO quality management system from product design, and manufacturing to installation services. Each process is inspected by a quality inspector. Products that do not meet the standards are returned to the previous process for production, and the company will conduct the finished product. Sampling inspection, the finished product passes the performance inspection and has the certificate of conformity before leaving the factory.
Production Market
Our customers come from all over the world, and the main markets are from the United States, Britain, Australia, South Korea, Canada, Germany, etc.
Packing and shipping
1. According to the product size of the Roller ceramic rubber sheet, the company has special personnel to design and customize the packaging according to the drawings.
2. The packaging forms include fumigation-free wooden boxes and iron shelf packaging. The packaging method is selected according to the weight and structure of the product.
3. The label will be affixed on the outside of the package.
4. The outside of the product or wooden box will be packaged with bubble film or cling film, to prevent rust and not be wet by rain
5. The relevant inspection report or shipping list of the goods will be sent with the goods or sent to customers in electronic form.
