Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Ceramic Lagging Sheet
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Pulley Lagging |
Certifications: |
ISO 9001, ISO 14001 |
Chemical Resistance: |
Excellent |
Color: |
White |
Installation Method: |
Adhesive Or Mechanical Fastening |
Length: |
Customization |
Material: |
Ceramic |
Surface: |
Smooth |
Abrasion Resistance: |
High |
Adhesion: |
Strong |
Application: |
Conveyor Belt Pulley Lagging |
Certifications: |
ISO 9001, ISO 14001 |
Chemical Resistance: |
Excellent |
Color: |
White |
Installation Method: |
Adhesive Or Mechanical Fastening |
Length: |
Customization |
Material: |
Ceramic |
Surface: |
Smooth |
Product Description

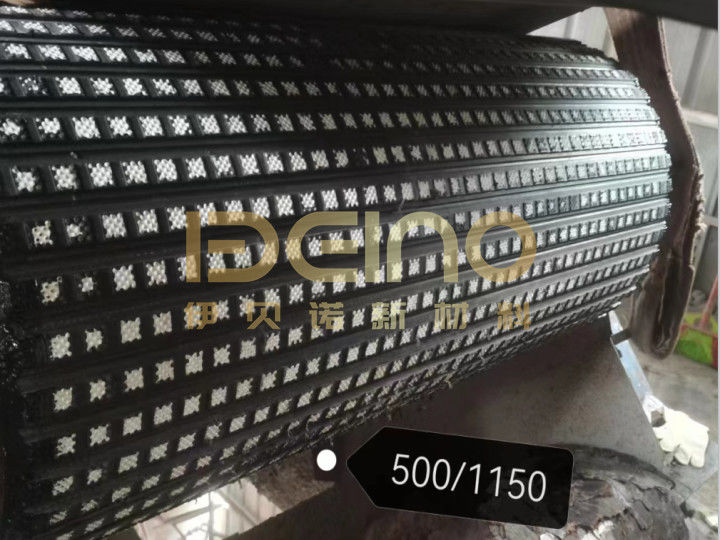

The wear-resistant ceramic roller adopts a thermal vulcanization process. The wear-resistant ceramic is thermally vulcanized in the rubber to form a liner, and then the liner is glued to the surface of the roller with an imported high-strength adhesive.
Alumina ceramic technical parameters
|
Items |
Specifications |
|
Content of alumina |
≥95% |
|
Density |
≥3.8 g/cm3 |
|
Rockwell A hardness |
≥85HRA |
|
Impact strength |
≥1500 MPA |
|
Fracture toughness |
≥4.0MPa·m1/2 |
|
Bending Strength |
≥330MPa |
|
Thermal conductivity |
20W/m.K |
|
Thermal expansion coefficient |
7.2×10 6m/m.K |
|
Volume wear |
≤0.02cm3 |
|
Ceramic thickness |
8mm |
Technical parameters of vulcanized rubber
|
Items |
Specifications |
|
Pull apart strength |
≥12MPa |
|
Pull apart prolongation |
250％ |
|
Shore hardness |
55 65 |
|
Permanent deform |
≤24％ |
|
The shared stress between the ceramic and rubber |
≥3.0MPa |
|
Temperature resistance |
≤100℃ |
|
The aging life of rubber |
≥15 years |
|
Rubber and ceramic peel strength |
≥30Kgf/mm2 |
|
Peel strength between rubber and equipment body |
≥12 Kgf/mm2 |
|
Rubber thickness |
8mm |
Products Feature
1. The wear-resistant ceramic roller adopts imported glue and has super tensile force.
2. Each ceramic piece has protrusions that can generate positive traction, prevent slippage, and prolong the service life of the conveyor belt roller, which is 5 times that of ordinary rubber rollers.
3. Each ceramic rubber sheet has grooves spaced at a certain distance, which can discharge foreign matter (dust, mud) on the drum along the grooves so that the drum has a unique self-cleaning function, which is especially suitable for humid working environments.
4. Prevent roller deviation
5. Protect the belt
Our Advantages
1. The ceramic of the wear-resistant ceramic roller has high wear resistance. When used on the belt drive roller, the special structure of the ceramic and the special arrangement method, as well as the special rubber structure, increase the friction coefficient between the belt and the belt to prevent The belt is slipping.
2. Under the same load, the tension of the belt can be reduced and the life of the belt can be prolonged.
3. The wear resistance of ceramics makes the service life of the driving drum more than ten times longer than that of the original drum.
4. It is suitable for harsh conditions such as high wear, easy skidding, and wet materials or surrounding environments.
What is Wear Resistant Ceramic Roller?
The Wear Resistant Ceramic Roller is a cylindrical object composed of advanced ceramic materials with excellent wear resistance, high hardness, and excellent thermal shock resistance. The surface of the ceramic roller has a polished finish, making it ideal for a wide range of applications.
Factory equipment introduction
The company has medium frequency hot simmering pipe benders, CNC cutting machines, lathes, punching machines, milling machines, sawing machines, radial drills, and other production and processing equipment, and is equipped with professional equipment and technical personnel, with a certain scale of production capacity.
