Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Elacera
Certification: ISO9001-2015
Model Number: Concrete Pump Pipeline
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Connection Type: |
Clamp |
Warranty: |
1 Year |
Bending Radius: |
4D-7D |
Application: |
Concrete Pumping |
Welding Type: |
Automatic Welding |
Burst Pressure: |
220 Bar |
Tensile Strength: |
≥480Mpa |
Color: |
Red/Blue/Green/Customized |
End Connection: |
Welded |
Weight: |
10-12KG |
Material: |
Pipe Lined With Alumina Ceramic |
Applicable Model: |
Suitable For All Concrete Pump Trucks |
Connection Type: |
Clamp |
Warranty: |
1 Year |
Bending Radius: |
4D-7D |
Application: |
Concrete Pumping |
Welding Type: |
Automatic Welding |
Burst Pressure: |
220 Bar |
Tensile Strength: |
≥480Mpa |
Color: |
Red/Blue/Green/Customized |
End Connection: |
Welded |
Weight: |
10-12KG |
Material: |
Pipe Lined With Alumina Ceramic |
Applicable Model: |
Suitable For All Concrete Pump Trucks |
Product Description
The pump pipe is a part of the pump create parts and belongs to the pipeline of the concrete delivery pump truck. The pump pipe is a new type of construction machinery accessories product that appears with the application of the concrete delivery pump. These pumps create parts that greatly improve the efficiency of concrete construction during the production process.

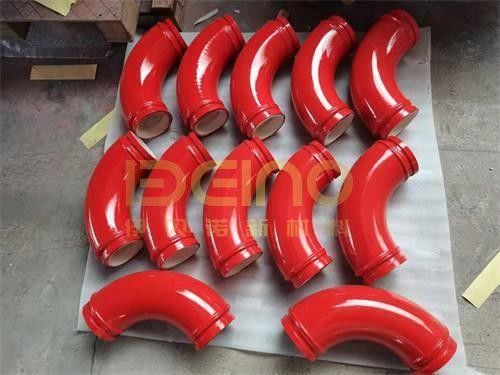

The elbow of the pump truck is an important component of the pump concrete parts, and it is also a very seriously worn part. In the process of use, the service life of the elbow is much lower than that of the straight pipe under the same conditions. The common material in the market is high-chromium cast iron as the lining material of the steel pipe or spray tungsten carbide coating on the inner wall of the steel pipe to improve the resistance of the inner wall of the pipe. These materials wear very fast in the environment of material erosion and corrosion, etc. To meet the production demand, it is necessary to continuously replace the pipeline, which reduces the production efficiency and increases the cost of the enterprise.
Company Profile
Hunan Yibeinuo New Material Co., Ltd. is a comprehensive enterprise specializing in the production and construction of alumina ceramics. The wear-resistant ceramic pipes, wear-resistant ceramic sheets, ceramic liners, alumina ceramics, and other products are of reliable quality and at affordable prices. We have been recognized by the majority of consumers.
Product Features
Hunan Yibeinuo New Material Co., Ltd. has developed a new type of wear-resistant ceramic pump truck pipeline after years of on-site construction accumulation and repeated testing. The pipeline adopts the overall hot simmering bending process, and we comprehensively analyze the flow direction of the concrete material. The flange is seriously worn. ZTA ceramics are used in all parts, and 95% alumina ceramics are used for the inner arc and outer arc parts with relatively small wear, to achieve the purpose of basically the same wear of each part during use and highlight the best cost performance.
What are Pumpcrete Parts?
Pumpcrete Parts are high-quality, top-performing aftermarket parts and consumables for concrete pumps. These parts are designed and developed to complement multiple leading brands of concrete pumps like Putzmeister, Schwing, and Sany. The parts' design incorporates creative ingenuity and customization to manufacture reliable and `ideal products for our customers.
Product advantages:
1. The pipeline is lined with high wear-resistant ceramics, the hardness can reach HAR90, second only to diamond
2. The outer tube is made of a high-toughness low-carbon seamless steel tube, which is formed by hot bending as a whole and can withstand high pressure.
3. The pipeline is installed smoothly to ensure that the material passes through the pipeline with low resistance, no material blockage, and easy cleaning.
4. The flange mouth is made of ZTA ceramics, which can effectively improve the wear resistance of weak parts.
5. The end elbow has a warranty of 60,000 square meters, and the ordinary elbow has a warranty of 120,000 square meters, with outstanding cost performance.
FAQ:
Q: Is the weight of the ceramic pump tube the same as the carbon steel tube?
A: The ceramic tube of the same specification is about 9% lighter than the carbon steel tube, which reduces the weight of the boom.
Q: How much pressure the pump pipe can bear?
A: The pressure-bearing capacity of the pump pipe can reach 50MPa, so there is no need to worry about the pipe bursting.
Q: I am very concerned about the service life of the ceramic pump pipe.
A: The warranty for end elbows is 60,000 cubic meters, and for boom pipes is 120,000 cubic meters.
Q: Is it easy to install pipes?
The pipe interface of wear-resistant ceramic pump pipes is a standard clamp interface, and the pipe installation is the same as that of ordinary pipes.
Q: Why is the price so high?
A: The Pumpcrete Parts are expensive alumina ceramics, the pipe manufacturing process is complicated and the cost is high. But the service life is 5 times that of ordinary pipelines. It can greatly reduce the frequency of pipe replacement of pump trucks, reduce the workload of operators, and improve work efficiency.
