Impact Resistance Concrete Pump Parts ODM Wear Resistant Pipe

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Concrete Pump Pipeline

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Concrete Pump Parts ODM

,

ODM Wear Resistant Pipe

,

Impact Resistance Concrete Pump Parts

Outer Diameter:
133mm
Hardness:
≥HRC63
Burst Pressure:
220bar/270bar/400bar
Size:
DN125
Oem Service:
Available
Connection Type:
Clamp
Service Life:
40,000-60,000m³
Welding Type:
Automatic Welding
Package:
Standard Export Packing/Customized
Flange Type:
SK/HD/ZX/FM
Working Pressure:
85bar/130bar/200bar
Thickness:
4mm-10mm
Material:
High Quality Steel
End Connection:
Welded/Clamp
Outer Diameter:
133mm
Hardness:
≥HRC63
Burst Pressure:
220bar/270bar/400bar
Size:
DN125
Oem Service:
Available
Connection Type:
Clamp
Service Life:
40,000-60,000m³
Welding Type:
Automatic Welding
Package:
Standard Export Packing/Customized
Flange Type:
SK/HD/ZX/FM
Working Pressure:
85bar/130bar/200bar
Thickness:
4mm-10mm
Material:
High Quality Steel
End Connection:
Welded/Clamp
Impact Resistance Concrete Pump Parts ODM Wear Resistant Pipe

Product Description

The ceramic pump tube is one of the concrete pump parts, which is mainly used for concrete conveying of construction machinery pump trucks., Use zirconium-aluminum composite ceramics with better performance in the first section where the wear is the most serious, and use ordinary wear-resistant ceramics in other parts. While saving costs, the wear degree of each part of the pump pipe is consistent, which is convenient for concrete pumps. Parts pump tubing for better repair and replacement.



Product Features

Super wear-resistant: As a new material for new concrete pump parts, the ceramic pump truck pipeline increases the service life of ordinary pipelines by more than 5-10 times. The pump truck pipeline is lined with zirconium-aluminum composite ceramics, with a Rockwell hardness of HRA90, second only to diamond in hardness.



Impact resistance: The fracture toughness of alumina ceramics can reach 7Mpa•m½, which is 1.5 times that of ordinary wear-resistant ceramics, which can meet various harsh working conditions.



Lightweight: The density of ceramics is only half of that of steel, and the pipeline of the pump truck is about 20% lighter than the ordinary cast steel pipeline. The 125A90R180 elbow is only 10.7kg, which is 30% lighter than the cast steel elbow.



Good compressive resistance: The pipeline is stamped from 20# seamless steel pipe, with good sealing performance. The compressive strength of ceramics is 1300MPa, which can fully meet the pressure-bearing requirements of various types of pump truck boom tubes on the pipeline.



The inner wall is smooth: the ceramic patch is flat, the height difference is controlled within 1mm, and it is not easy to block the material.

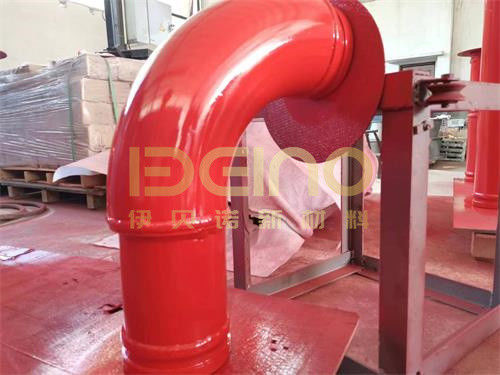

Wear resistant pump pipeWear resistant Pump trucks pipelineConcrete Pump truck Pipe



Product Application

Wear-resistant ceramic pump pipes, as a kind of construction machinery used in conjunction with concrete pumps, are widely used in concrete engineering machinery pump trucks, such as Sany, Zoomlion, etc., and can also be used in pipe pile factories and pipes for making concrete electric poles. The main application products of the pile factory are wear-resistant ceramic cones with large and small heads



Q: Why choose us?

A: 1. Manufacturing experience: 15 years of industry experience, rich on-site practical experience, can provide the best and best anti-wear solution according to the customer’s site

2. Installation and construction team: We have a construction team of 10-15 people, all with more than 10 years of construction experience

3. Quality assurance: All products have strict quality inspection before shipment.

4. Price advantage: factory direct sales, competitive price.

5. Competitive production capacity and fast transportation.

6. Our company provides OEM service.



Q:Is the weight of the ceramic pump tube the same as the carbon steel tube?

A:Ceramic tubes are about 9% lighter than carbon steel tubes, reducing the weight of the boom



Q:How your quality guarantee?

A:We have 100% quality guarantee to customers. We will be responsible for any quality problem.



Q:Would you have a discount if l have a large order?

A; Yes we could offer different discount according to your order quantity.



Q:Which industries are your products used in?

A:Our products are widely used in steel, thermal power, cement, ports, coal, mining, chemical, machinery, concrete engineering machinery, lithium batteries and other industries.



Q: Do you accept custom design on size?

A:Yes, if the size is reasonable



Q: Could you print our company LOGO on the nameplate and package?

A:Yes, we can do that





  •
