Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Concrete Pump Pipeline
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Bending Radius: |
4D-7D |
Connection Type: |
Clamp |
Package: |
Standard Export Packing/Customized |
Warranty: |
1 Year |
Welding Technique: |
Automatic Welding |
Life Span: |
More Than 60000cbm |
Size: |
DN125/DN150/DN175 |
Tensile Strength: |
≥500Mpa |
Working Pressure: |
85bar/130bar/160bar |
Wall Thickness: |
4.5mm/5.0mm/7.0mm |
Length: |
3m/4m/5m/6m |
Quality Assurance: |
60000m³ |
Bending Radius: |
4D-7D |
Connection Type: |
Clamp |
Package: |
Standard Export Packing/Customized |
Warranty: |
1 Year |
Welding Technique: |
Automatic Welding |
Life Span: |
More Than 60000cbm |
Size: |
DN125/DN150/DN175 |
Tensile Strength: |
≥500Mpa |
Working Pressure: |
85bar/130bar/160bar |
Wall Thickness: |
4.5mm/5.0mm/7.0mm |
Length: |
3m/4m/5m/6m |
Quality Assurance: |
60000m³ |
Product Description

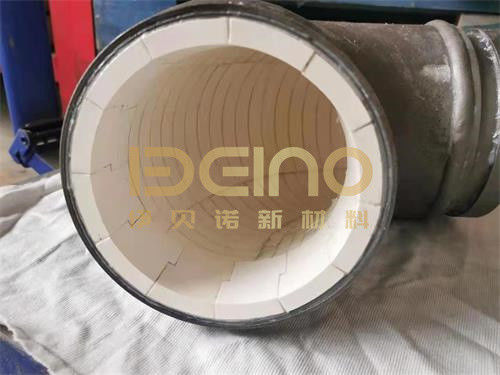

The steel parts of concrete pump pipes produced by our company are seamless steel pipes, and the flanges at both ends are lined with zirconia ceramics, which improves the anti-wearability of heavy wear parts
Ceramic pump tube model table
| Product model table (part) | ||
| NO | Product name | Specification |
| 1 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R275 end elbow |
| 2 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R190.5 end elbow |
| 3 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R180 end elbow |
| 4 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R275 |
| 5 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 45° R275 |
| 6 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R190.5 |
| 7 | 207 zirconium aluminum composite wear resistant ceramic pump pipe (super wear resistant) | 125A 90° R180 |
| Note: The quality assurance of the conventional concrete (C25/30) at the boom position is 120,000 m3, and the quality assurance of the conventional concrete (C25/30) at the end position is 40,000 50,000 m3 | ||
| The above pipe models are only listed in part, we can also customize the special-shaped pipe | ||
Ceramic technical parameters
| Items | Specifications |
| Al2O3 | ≥75% |
| Zirconia | ≥21% |
| Density | 4.2 g/cm3 |
| Compressive Strength | ≥ 1400 Mpa |
| Rockwell Hardness | ≥ 90 HRA |
| Vickers Hardness | ≥ 1350 HV10 |
| Fracture Toughness (KIC) | ≥ 5.5 Mpa.m1/2 |
| Bending Strength | ≥ 350 Mpa |
| Wear Volume | ≤ 0.009 cm3 |
| Tensile Strength (TSB) | ≥ 15 Mpa |
| Rubber | Natural |
| Natural | ≥450 |
| Elongation | 450% |
| Items | Specifications |
| Al2O3 | ≥ 99% |
| Density | >3.83g/cm3 |
| HV10 | ≥1300 |
| Rock Hardness HRA | ≥90 |
| Bending Strength MPa | ≥340 |
| Compression strength MPa | ≥1300 |
| Fracture Toughness KIc MPam 1/2 | ≥4.2 |
| Volume wear | ≤0.01cm3 |
Product certification and product testing
concrete pump pipes are fully integrated into the ISO quality management system from product design, manufacturing to installation services. Every process is inspected by quality inspectors. Products that do not meet the standards are returned to the previous process for production, and the company will conduct sampling inspections on the finished products. , The finished product has passed the performance inspection before leaving the factory and has a certificate of conformity affixed.
Perfect service system
We are a professional manufacturer of wear resistant ceramic concrete pump pipes, providing you with high cost effective and competitive prices!
