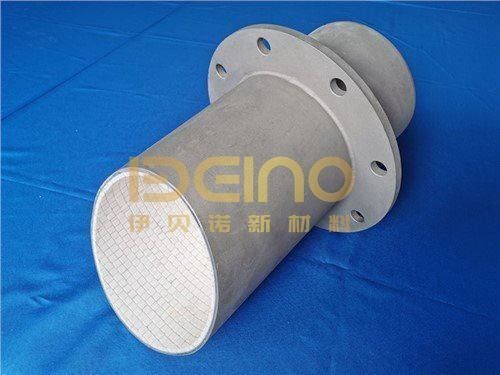

Stainless Steel Alumina Ceramic Pipe Eco Friendly Ceramic Lined Pipe Elbows

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Alumina Ceramic Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Stainless Steel Alumina Ceramic Pipe

,

Eco Friendly Alumina Ceramic Pipe

,

Eco Friendly Ceramic Lined Pipe Elbows

Color:
White
Corrosion Resistance:
Strong
Electrical Insulation:
High
Hardness:
9 Mohs
Material:
Alumina Ceramic
Pressure Resistance:
High
Shape:
Pipe
Size:
Customizable
Size Range:
Customizable
Surface Finish:
Polished
Color:
White
Corrosion Resistance:
Strong
Electrical Insulation:
High
Hardness:
9 Mohs
Material:
Alumina Ceramic
Pressure Resistance:
High
Shape:
Pipe
Size:
Customizable
Size Range:
Customizable
Surface Finish:
Polished
Stainless Steel Alumina Ceramic Pipe Eco Friendly Ceramic Lined Pipe Elbows

Product Description

1. The ceramic elbow comprises three parts: steel, viscose, and ceramic. The alumina ceramic is pasted on the inner wall of the pipeline with strong viscose to form a firm anti-wear layer after solidification.

2. The steel parts of ceramic elbows are formed by integral hot simmering. This process differs from centrifugal casting pipes or coiled plate forming and belongs to seamless steel pipes.

3. The ceramic elbow pasting process adopts each circle of staggered seam and arch joint installation to form a firm anti-wear layer. It will not age or fall off after long-term operation in a high-temperature environment below 350. Its service life is more than 4 5 times that of ordinary wear-resistant pipes.



Product Details

Composite ceramic tubeceramic-elbowAlumina ceramic ring_

Product Features

1. Good wear resistance: The inner ceramic layer of the wear-resistant ceramic curved pipe is alumina ceramic, and its hardness (HRA) is ≥88. Its wear resistance is more than 10 times that of high chromium wear-resistant cast iron alloy pipe fittings and has a long service life.

3. Corrosion resistance: Different wear-resistant ceramic materials are selected, which have excellent anti-corrosion performance against different corrosive media, and are resistant to strong corrosive media such as acid and alkali. To

4. Good temperature resistance: The ceramic elbow can operate at 350 for a long time.

5. Reduce maintenance: The ceramic elbow can save the cost and time of maintenance and replacement of materials.

6. Lightweight: 1/3 lighter than ordinary pipes.



Application industries: thermal power, cement, steel, coal, ports, chemicals, new energy, mineral processing, engineering machinery, lithium power, smelting



Product parameters

Items Specifications
Content of alumina ≥92%
Density ≥3.6 g/cm3
Rockwell A hardness ≥82HRA
Impact strength ≥1200 MPA
Fracture toughness ≥3.8MPa·m1/2
Vickers hardness ≥1150HV10
Bending Strength ≥290MPa

Product Packaging

IMG_20210426_095014IMG_20210429_130500IMG_20210426_095030
