Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Concrete Pump Pipeline
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Temperature Range: |
-40°C To +100°C |
Material: |
Steel Pipe Lined With Alumina Ceramic |
Warranty: |
1 Year |
Package: |
Standard Exporting Package |
Specifications And Models: |
125*R275-45°(Standard Or Customized Product)s) |
Thickness: |
4mm-10mm |
Application: |
Concrete Pump Truck/Concrete Pump Trailer |
Connection Type: |
Clamp |
Life Span: |
More Than 60000cbm |
Burst Pressure: |
220bar/300bar/400bar/Customized |
Wall Thickness: |
4.0mm/4.5mm/5.0mm/7.0mm |
Size: |
DN125 |
Temperature Range: |
-40°C To +100°C |
Material: |
Steel Pipe Lined With Alumina Ceramic |
Warranty: |
1 Year |
Package: |
Standard Exporting Package |
Specifications And Models: |
125*R275-45°(Standard Or Customized Product)s) |
Thickness: |
4mm-10mm |
Application: |
Concrete Pump Truck/Concrete Pump Trailer |
Connection Type: |
Clamp |
Life Span: |
More Than 60000cbm |
Burst Pressure: |
220bar/300bar/400bar/Customized |
Wall Thickness: |
4.0mm/4.5mm/5.0mm/7.0mm |
Size: |
DN125 |

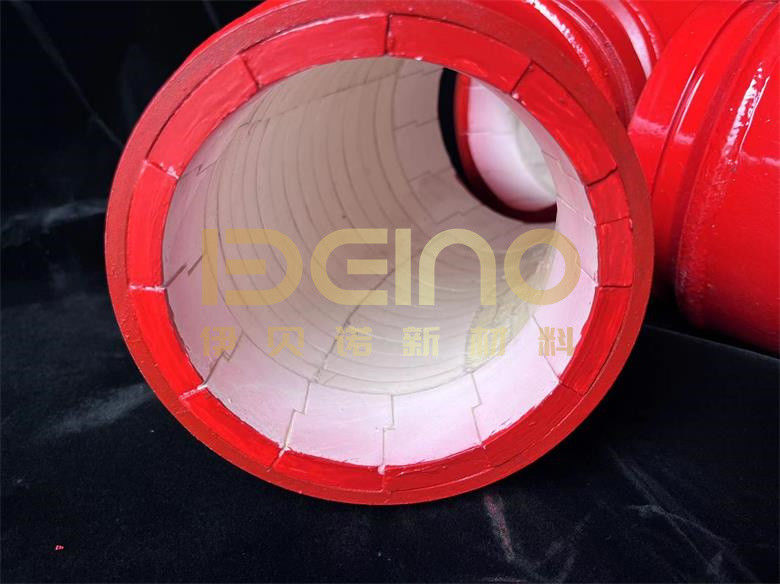

Product Description
The pump truck pipeline is concrete pump car spare parts. The pump tube is short for the concrete delivery pump pipeline. It is a kind of construction engineering accessories product. It is divided into a sky pump tube and a ground pump tube. It is a kind of construction engineering accessories product. Its appearance has greatly improved the efficiency of construction. It has changed the operation method that used to be manual or crane buckets or buckets to quickly transport concrete to the place where it needs to be poured. The construction efficiency has been increased by nearly a hundred times.
Product development background
In modern construction, pump truck transportation is to use pressure to transport concrete along the pipeline to a certain height and distance. With the increase of the conveying height and the pressure, the pipeline of the pump truck accelerates the wear of the pipeline, especially the wear parts of different degrees are formed by the influence of the diameter of the pipeline, the flow channel, the flow rate, and the impact force.
Traditional cast steel pipelines are cumbersome, inconvenient to replace and maintain, have a short service life, and are frequently shut down for maintenance, which seriously affects production. The development and application of concrete pump car spare parts with pipelines lined with ceramics have greatly solved this problem. The practice has proved that the ceramic pump pipe of concrete pump truck spare parts can prolong the service life of the pump truck pipeline by 5-10 times.
Product parameters
| Items | Specifications |
| Al2O3 | ≥75% |
| Zirconia | ≥21% |
| Density | 4.2 g/cm3 |
| Compressive Strength | ≥ 1400 Mpa |
| Rockwell Hardness | ≥ 90 HRA |
| Vickers Hardness | ≥ 1350 HV10 |
| Fracture Toughness (KIC) | ≥ 5.5 Mpa.m1/2 |
| Bending Strength | ≥ 350 Mpa |
| Wear Volume | ≤ 0.009 cm3 |
| Tensile Strength (TSB) | ≥ 15 Mpa |
| Rubber | Natural |
| Natural | ≥450 |
| Elongation | 450% |
Company Philosophy
Starting from the actual situation of users, we develop and design zirconium-aluminum composite ceramic pump pipelines to achieve super wear-resistant and super cost-effective pipelines and solve on-site conflicting needs attentively.
Zirconium-aluminum composite ceramic lined pipe fittings - solve the problem of high pressure and high wear of commercial concrete conveyed by pump trucks.
Difference Analysis Of Different Wear-Resistant Materials
| Items | Quenched manganese steel pipe | Bimetallic Tube | Imported bimetallic tube | Wear-resistant ceramic pump tube |
| Straight pipe service life | 25000M3 | 70000 M3 | 100000 M3 | 100000 M3 |
| Elbow service life | 15000 M3 | 50000 M3 | 100000 M3 | 60000 M3 |
| Delivery cost per cubic meter | RMB0.76 | RMB0.83 | RMB0.67 | RMB0.54 |
| Weight | 980kg | 1000kg | 1800kg | 1200kg |
| Surface hardness | HRC58 | HRC63 | HRC67 | HRA90 |
Product Series
The ceramic product series for the lining of pump truck pipelines include end pipe elbows, 2-arm and 3-arm straight pipes, turret elbows, straight pipes, climbing pipes, reducing pipes, large elbows, transition sleeves, etc.
Product Features
1. Super wear-resistant: Speaking with facts, the conveying volume of the end elbow exceeds 35,000 cubic meters; the conveying volume of the straight pipe exceeds 120,000 cubic meters;
2. High precision and small error: All pipes are made of molds, and the positive and negative tolerances are within 0.5% to ensure a smooth installation.
3. Customized production: R&D and manufacturing enterprises can customize production.
