Custom Wear Resistant Ceramic Pipe Ceramic Lined Bends For Power Generation

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Wear Resistant Ceramic Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Power Generation Ceramic Lined Bends

,

Custom Ceramic Lined Bends

Application:
Mining/Power Plant/Chemical Industry
Chemical Resistance:
Excellent
Chemical Stability:
Strong
Color:
White
Compressive Strength:
High
Hardness:
9 Mohs
Installation Method:
Welding/Flange
Length:
Customized
Shape:
Pipe
Surface:
Smooth
Application:
Mining/Power Plant/Chemical Industry
Chemical Resistance:
Excellent
Chemical Stability:
Strong
Color:
White
Compressive Strength:
High
Hardness:
9 Mohs
Installation Method:
Welding/Flange
Length:
Customized
Shape:
Pipe
Surface:
Smooth
Custom Wear Resistant Ceramic Pipe Ceramic Lined Bends For Power Generation

Product Description

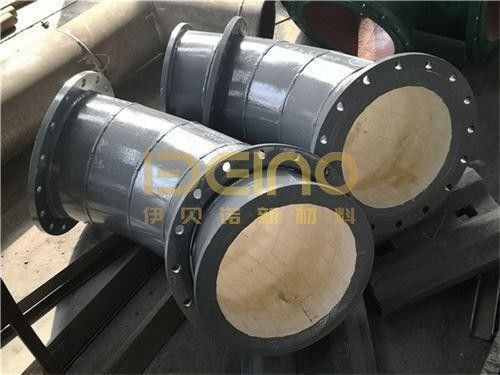

Ceramic lined bends are also called wear-resistant ceramic composite elbows or wear-resistant ceramic lined bends. They have high wear resistance, corrosion resistance, and good heat resistance. They overcome the shortcomings of the low hardness of steel pipe, poor wear resistance, and poor ceramic toughness. The good comprehensive properties, such as wear resistance, heat resistance, corrosion resistance, mechanical thermal shock resistance, and good weldability, make them able to be used in many places. It is an ideal wear-resistant and corrosion-resistant pipeline for conveying granular materials, grinding, and corrosive media.



The ceramic lined bends adopt the form of pasting, stud welding, or dovetail to install wear-resistant ceramics on the inner wall of the pipeline to form a solid anti-wear layer. The outer layer is steel and the inner layer is special wear-resistant ceramics. They have been widely used in pneumatic conveying and hydraulic conveying systems in industrial enterprises due to their super wear resistance, especially in elbows, tees, distributors, and other parts where erosion and wear are very serious. The price/performance ratio is one of the best in pipelines at present.

Ceramic Lined BendsCeramic lined with short radiusCeramic-lined carbon steel pipe

Factory introduction

The company's products have high strength, high hardness, wear resistance, and corrosion resistance. The products are exported to Japan, South Korea, Germany, the United States, the United Kingdom, Australia and other countries. The products are divided into the following series

1. Wear-resistant ceramic sheet

2. Wear-resistant ceramic liner

3. Wear-resistant ceramic composite pipelining

4. Wear-resistant ceramic elbow (Lithium battery elbow)

5. Wear-resistant ceramic roller encapsulation

6. The whole equipment is lined with ceramics

7. Accessories on construction machinery-ceramic pump tube, ceramic transition sleeve



Ceramic technical parameters

Items Specifications
Content of alumina ≥92% ≥95%
Density ≥3.6 g/cm3 >3.8g/cm3
Rockwell A hardness ≥82HRA ≥85HRA
Impact strength ≥1200 MPA ≥1500 MPA
Fracture toughness ≥3.8MPa·m1/2 ≥4.0MPa·m1/2
Vickers hardness ≥1150HV10 ≥1200HV10
Bending Strength ≥290MPa ≥330MP
Testing equipment Testing purpose
Rockwell hardness tester measuring the hardness of ceramics
Sandblasting testing machine measuring ceramic abrasion
Universal material testing machine measuring the compressive strength of ceramics
Microscope Porosity Analysis of Ceramic Surface
Universal material testing machine measuring the compressive strength of ceramics
Tensile testing machine Tensile testing
Density meter ceramic density analyzer
Impact testing machine ceramic compressive strength test

FAQ

Q: How long is your delivery time?

A: The delivery time of customized products is generally 25-35 days, and noncustomized products are generally shipped within 24 hours after payment.

Q: Do you provide a sample? Is it free?

A: If the sample is low value, we will provide the free sample with freight collection. But for some high-value samples, we need to collect the sample charge.

Q: Do you provide samples? Is it free?

A: If the value of the sample is low, we will provide it for free, but the freight needs to be paid by the customer. But for some high-value samples, we need to charge a fee.

Q: What are your payment terms?

A: T/T 30% as the deposit, The balance payment is paid in full before shipment

Q: What is the packaging and transportation form?

A: Non-stealing wooden box and iron frame packaging. Special packaging is available according to customer needs. The transportation is mainly by sea.

Q: Can we use our own logo?

A: Yes, we can print your private logo according to your request

Q: When can I get the price?

A: Usually we quote within 8 hours after we get your inquiry.

Q: What is your minimum order quantity?

A: There is no minimum order quantity requirement. Customized products are tailor-made according to the drawings provided by the customer.
