Wear Resistant Ceramic Tile Lined Steel Pipe for Abrasive Material Conveying

Product Description:

ELACERA ceramic tile-lined steel pipes use 95% alumina ceramic tiles to protect the inner surface of steel pipelines against abrasive wear. Pipe diameter, ceramic thickness, steel material, and connection type can be customized according to drawings and operating conditions.

Ceramic tile-lined steel pipe is designed for pipelines that continuously handle abrasive powders, particles, and bulk materials.

The outer steel pipe provides structural strength, while the inner wear surface is protected with high-hardness alumina ceramic tiles. This combination helps reduce pipe wall wear in conveying systems where ordinary steel pipes may require frequent repair or replacement.

ELACERA manufactures ceramic-lined steel pipes according to the customer's pipe dimensions, drawings, and operating conditions.

95% Alumina Ceramic Lining

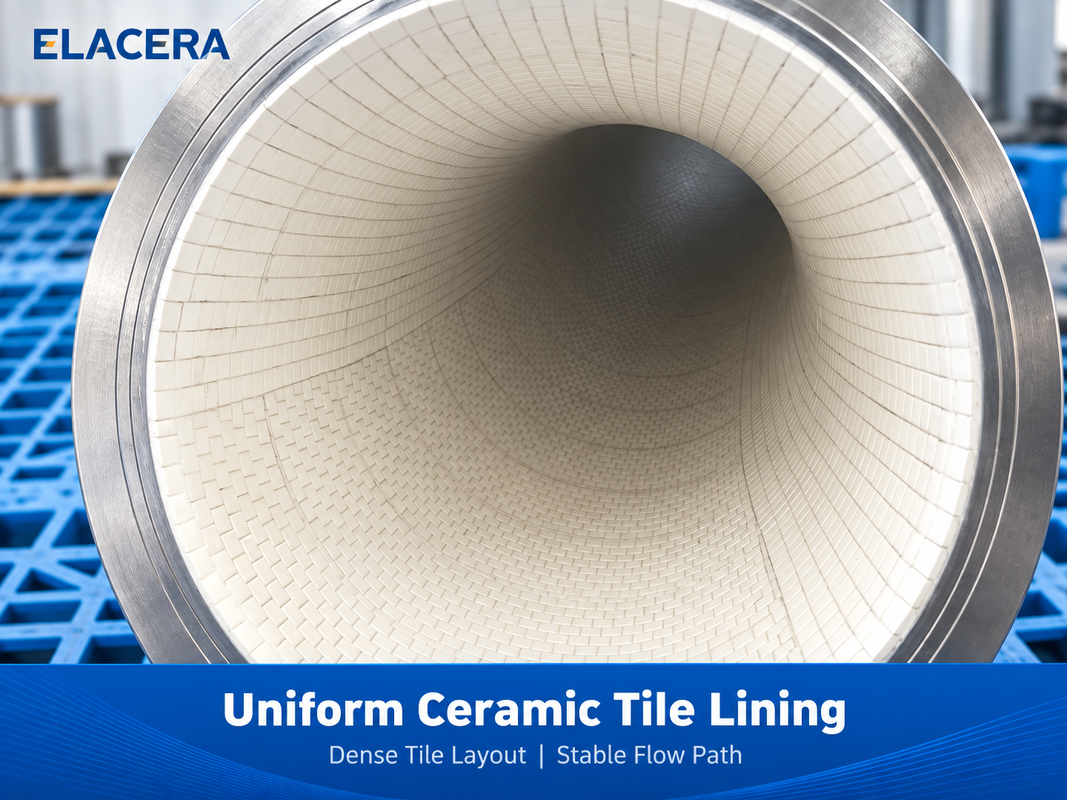

The internal lining is made from 95% alumina wear-resistant ceramics. Individual ceramic tiles are arranged closely along the inner wall of the pipe and bonded to the prepared steel surface.

For curved or cylindrical surfaces, the ceramic size and layout are selected according to the pipe diameter so that the lining follows the internal geometry as closely as possible.

Staggered ceramic joints can also be used to avoid continuous wear paths along the pipe wall.

Typical Ceramic Properties

Actual technical data can be confirmed according to the ceramic grade used for the project.

Where Ceramic Tile Lined Pipes Are Used

These pipes are mainly used in systems carrying abrasive powder or granular materials, including:

• pneumatic conveying pipelines
• coal and fly ash conveying
• mineral and ore handling
• cement and raw material conveying
• steel plant material handling
• lithium battery powder conveying
• chemical and bulk material processing

Straight pipes, reducers, bends, tees, and other fabricated pipe sections can be lined according to the actual pipeline layout.

Customized to the Pipeline

Ceramic-lined pipes are normally manufactured according to project requirements rather than one fixed standard size.

We can customize:

Pipe diameter and length according to the existing pipeline or drawing.

Ceramic thickness according to the expected wear level and service conditions.

Steel material and wall thickness according to the mechanical and pressure requirements of the pipeline.

Connection type including flanges, welded ends, or other project-specific connections.

Before production, the ceramic layout is selected according to the internal diameter and geometry of the pipe.

Production and Lining

Before ceramic installation, the inner steel surface is cleaned and prepared to provide a suitable bonding surface.

The alumina ceramic tiles are then arranged along the inner wall with controlled joints. Particular attention is given to the pipe ends and transition areas, where poor ceramic layout can create local wear points.

After lining and curing, the internal surface is inspected for ceramic alignment, bonding condition and obvious gaps.

For applications involving elevated temperature, impact, or special chemical conditions, the fixing method and adhesive system should be selected according to the actual working environment.

Send Us Your Pipe Drawing

For a ceramic-lined pipe recommendation, please provide the pipe drawing or the main operating information, including:

• pipe diameter and length
• conveyed material
• particle size
• operating temperature
• working pressure
• required ceramic thickness
• connection or flange standard

We can review the pipe structure and recommend a suitable ceramic lining arrangement before quotation.
