Alumina Lining Wear Resistant Ceramic Pipe Custom ISO Certificate

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Wear Resistant Ceramic Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Alumina Lining Wear Resistant Ceramic Pipe

,

Wear Resistant Ceramic Pipe Custom

Abrasion Resistance:
Superior
Chemical Stability:
Good
Compressive Strength:
High
Corrosion Resistance:
Excellent
Cost:
Reasonable
Density:
3.75 G/cm³
Hardness:
HRA 88
Installation Method:
Welding/Flange Connection
Abrasion Resistance:
Superior
Chemical Stability:
Good
Compressive Strength:
High
Corrosion Resistance:
Excellent
Cost:
Reasonable
Density:
3.75 G/cm³
Hardness:
HRA 88
Installation Method:
Welding/Flange Connection
Alumina Lining Wear Resistant Ceramic Pipe Custom ISO Certificate

Description

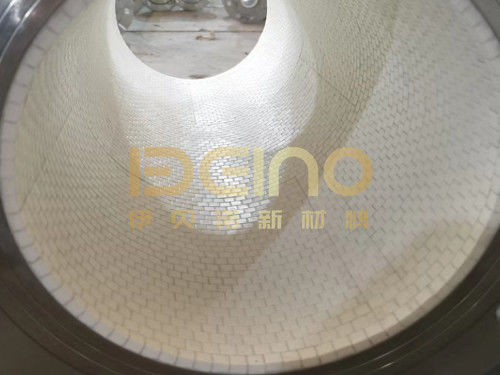

Alumina Lining is a wear-resistant ceramic tube with good acid and alkali resistance, which is mostly used in ash removal, dust removal, and vulcanization systems in cement, electric power, coal chemical, and other industries. Its impact resistance and high-temperature resistance are also very good, so it is not easy to crack and peel. It is widely used and can customize various regular tees, oblique tees, equal-diameter tees, special-shaped tees, etc. Besides the advantages of the product itself, our company also has lots of advantages. We have been in this industry for many years, gaining rich experience and advanced technology. We always put customers in the first place, so take a look at our product, you won't feel disappointed.



Features

Alumina Lining not only has excellent wear resistance and high-temperature resistance, but also has good toughness, excellent impact resistance, and good corrosion resistance, which make it able to withstand a lot of pressure and not easily corrode. Within a certain temperature and concentration range, it can almost be said to be resistant to various corrosive media (acids, alkalis, salts) and organic media, so it can be used where corrosion resistance is required. The product is easy to install, it has good performance, and can be welded, so compared with other pipes, the alumina-lined tee composite material has a long service life and outstanding cost performance.

Ceramic Tee Pipealumina pipeTee pipe lined with ceramic

Applications

It is suitable for material transportation pipelines with severe wear and erosion, such as mine filler, concentrate, tailings transportation, coal-fired thermal power plants supplying powder, coal powder, ash and slag transportation, slag removal, sulfur removal, dust removal, and other pipelines. Water in the cement industry Slag quenching, blast furnace coal injection, steelmaking red mud, sintered white ash, dust removal pipeline, raw meal, clinker, cement, pulverized coal, dust removal, etc.



Technical parameters

Items Specifications
Al2O3% ≥92%
Fe2O3% ≤0.20%
Mohs' hardness 9
Water Absorption (%) ≤0.02
Density(g/cm3) ≥3.60
Abrasion(%) ≤0.02

Testing equipment includes:

Testing equipment Testing purpose
Rockwell hardness tester measuring the hardness of ceramics
Sandblasting testing machine measuring ceramic abrasion
Universal material testing machine measuring the compressive strength of ceramics
Microscope Porosity Analysis of Ceramic Surface
Universal material testing machine measuring the compressive strength of ceramics
Tensile testing machine Tensile testing
Density meter ceramic density analyzer
Impact testing machine ceramic compressive strength test

FAQ

Q: Which industries are your products used in?

A: Our products are widely used in steel, thermal power, cement, port, coal, mineral processing, chemical industry, machinery, concrete construction machinery, lithium battery, and other industries.



Q: Does your product have warranty service? How long is the warranty period?

A: All products have warranty service, the warranty is one year, and the service life is 5 to 8 years according to the working conditions



Q: Are you a trading company or a manufacturer?

A: We are a manufacturing enterprise specializing in the production of wear-resistant ceramic pipes, wear-resistant ceramic liners, and ceramic linings for various equipment.



Q: Do you provide samples? Is it free?

A: If the value of the sample is low, we will provide it for free, but the freight needs to be paid by the customer. But for some high-value samples, we need to charge a fee.



Q: What are your payment terms?

A: T/T 30% as the deposit, The balance payment is paid in full before shipment



Q: How long is your delivery time?

A: The delivery time of customized products is generally 25-35 days, and non-customized products are generally shipped within 24 hours after payment.



Q: What is your transportation service?

A: We can provide vessel booking, customs declaration, transportation document preparation, and bulk shipping services at the port.



Why choose us?

1. Manufacturing experience: 15 years of industry experience, rich on-site practical experience, can provide the best and best anti-wear solution according to the customer’s site

2. Installation and construction team: We have a construction team of 10-15 people, all with more than 10 years of construction experience

3. Quality assurance: All products have a strict quality inspection before shipment.

4. Price advantage: factory direct sales, competitive price.

5. Competitive production capacity and fast transportation.

6. Our company provides OEM service.
