Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Alumina Ceramic Pipe
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Chemical Resistance: |
Excellent |
Color: |
White |
Corrosion Resistance: |
High |
Hardness: |
9 Mohs |
Material: |
Alumina Ceramic |
Max Working Temperature: |
1800°C |
Pressure Resistance: |
High |
Shape: |
Pipe |
Size: |
Customizable |
Surface Finish: |
Polished |
Chemical Resistance: |
Excellent |
Color: |
White |
Corrosion Resistance: |
High |
Hardness: |
9 Mohs |
Material: |
Alumina Ceramic |
Max Working Temperature: |
1800°C |
Pressure Resistance: |
High |
Shape: |
Pipe |
Size: |
Customizable |
Surface Finish: |
Polished |
Product Description

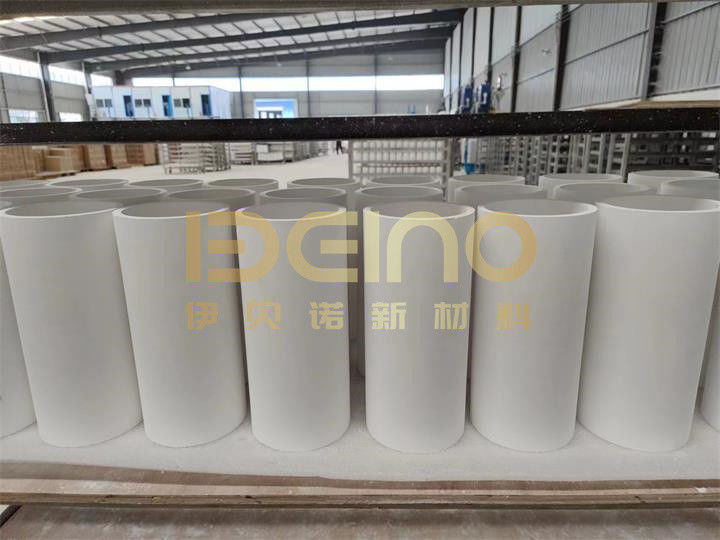

The outer tube material of the integral ceramic ring tube can be carbon steel, 316 or 304 stainless steel, or other alloy materials. The wear resistant ceramic ring is sintered at a high temperature of 1800 ℃ and has the same performance as the ceramic sheet. Under the same conditions, it is 20 wear resistant than ordinary pipes. Times, but the production cycle is long and the cost is high.
Ceramic technical parameters
| Items | Specifications | |
| Content of alumina | ≥92% | ≥95% |
| Density | ≥3.6 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥82HRA | ≥85HRA |
| Impact strength | ≥1200 MPA | ≥1500 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1150HV10 | ≥1200HV10 |
| Bending Strength | ≥290MPa | ≥330MPa |
Company Profile
Yibeinuo New Materials focuses on the research and development of new wear-resistant ceramic materials and is committed to providing material transportation, pneumatic conveying system engineering design, and various equipment wear problems under complex working conditions, we have 15 years of industry experience in the field of wear-resistant materials and provide one-stop service from production to installation. wear resistant ceramic rings can be designed, developed, produced, and processed according to customer needs. And other services.
Production Market
With the continuous expansion of factories and enterprises, export orders have been steadily increasing in recent years.
Our Service
For your inquiry, our company will process and reply within 24 hours, and the efficient team will give you the best service!
Product testing
The company strictly controls every process in the production of wear resistant ceramic products. We will have a series of testing equipment to conduct quality inspections to ensure that each product is 100% qualified.
| Testing equipment | Testing purpose |
| Rockwell hardness tester | measuring the hardness of ceramics |
| Sandblasting testing machine | measuring ceramic abrasion |
| Universal material testing machine | measuring the compressive strength of ceramics |
| Microscope | Porosity Analysis of Ceramic Surface |
| Universal material testing machine | measuring the compressive strength of ceramics |
| Tensile testing machine | Tensile testing |
| Density meter | ceramic density analyzer |
| Impact testing machine | ceramic compressive strength test |
