Welding Ceramic Lining Pipe Wear Resistant Ceramics For Heavy Industries

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Ceramic Lining Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Welding Ceramic Lining Pipe

,

Ceramic Lining Pipe Wear Resistant

,

Welding Wear Resistant Ceramics

Abrasion Resistance:
Superior
Density:
3.6-3.8 G/cm3
Hardness:
HRA 85-90
Installation Method:
Welding/Flange/Clamp
Length:
1000mm-6000mm
Material:
Ceramic
Outer Diameter:
20mm-1100mm
Pressure Resistance:
Up To 10MPa
Size Range:
DN50-DN2000
Thickness:
5-50mm
Abrasion Resistance:
Superior
Density:
3.6-3.8 G/cm3
Hardness:
HRA 85-90
Installation Method:
Welding/Flange/Clamp
Length:
1000mm-6000mm
Material:
Ceramic
Outer Diameter:
20mm-1100mm
Pressure Resistance:
Up To 10MPa
Size Range:
DN50-DN2000
Thickness:
5-50mm
Welding Ceramic Lining Pipe Wear Resistant Ceramics For Heavy Industries

Product Description

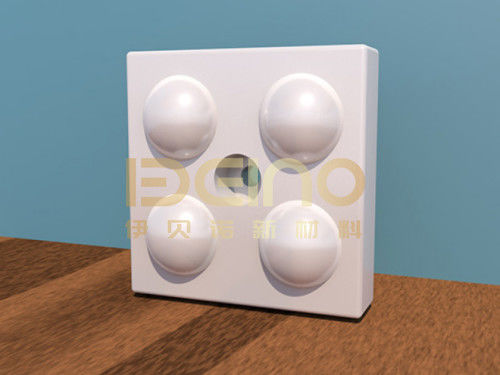

Welding wear resistant ceramics is mainly suitable for temperatures greater than 300°C. Wear resistant ceramics are installed on the inner wall of the pipeline in the form of a paste, stud welding, or dovetail to form a firm wear resistant layer.

1623742034(1)



Technical parameters

Items Specifications
Content of alumina ≥92% ≥95%
Density ≥3.6 g/cm3 >3.8g/cm3
Rockwell A hardness ≥82HRA ≥85HRA
Impact strength ≥1200 MPA ≥1500 MPA
Fracture toughness ≥3.8MPa·m1/2 ≥4.0MPa·m1/2
Vickers hardness ≥1150HV10 ≥1200HV10
Bending Strength ≥290MPa ≥330MPa

Products Feature

The Welding wear resistant ceramics technology is mainly to solve the problem of anti-wear of the conveying system equipment under high temperature pneumatic force. It has the characteristics of super wear resistance, high-temperature resistance, good toughness, strong impact resistance, and stud welding.



Product Application

Suitable for high-temperature powder conveying or anti-wear of powder system equipment



Company Profile

Hunan Yibeinuo New Material Co., Ltd. products include: Welding wear resistant ceramics, wear resistant ceramic sheets, wear resistant ceramic liners, wear resistant ceramic composite pipe linings, wear resistant ceramic elbows (lithium battery elbows), wear resistant ceramics Eight series of products, including drum encapsulation, ceramic lining for overall equipment, ceramic pump tubes, and ceramic transition sleeves, mainly serve thermal power, cement, steel, ports, coal, ports, mining, engineering machinery, sand making and other industries. It has high strength, wear resistance, corrosion resistance, and so on.



FAQ

Q: Why choose us?

A:1.Manufacturing experience: 15 years of industry experience, rich on-site practical experience, can provide the best and best anti-wear solution according to the customer’s site

2. Installation and construction team: We have a construction team of 10 to 15 people, all with more than 10 years of construction experience

3. Quality assurance: All products have a strict quality inspection before shipment.

4. Price advantage: factory direct sales, competitive price.

5. Competitive production capacity and fast transportation.

6. Our company provides OEM service.



Q: What products can you make?

A: Wear resistant ceramic sheet, wear resistant ceramic liner, wear resistant ceramic composite pipe lining, wear resistant ceramic elbow (lithium battery elbow), wear resistant ceramic drum encapsulation, ceramic lining for overall equipment, ceramic pump tube, Ceramic transition sets, etc.



Q: How long is your delivery time?

A: The delivery time of customized products is generally 25 35 days, and non-customized products are generally shipped within 24 hours after payment.



Q: What are your payment terms?

A: T/T 30% as the deposit, The balance payment is paid in full before shipment
