Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: ZTA Ceramics
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Corrosion Resistance: |
High |
Dielectric Strength: |
10 KV/mm |
Electrical Resistivity: |
10^14 Ω·cm |
Flexural Strength: |
1000 MPa |
Hardness: |
1400 HV |
Material: |
Zirconia Toughened Alumina |
Max Operating Temperature: |
1700°C |
Thermal Conductivity: |
20 W/mK |
Thermal Expansion Coefficient: |
8.5 X 10^-6 /°C |
Wear Resistance: |
High |
Corrosion Resistance: |
High |
Dielectric Strength: |
10 KV/mm |
Electrical Resistivity: |
10^14 Ω·cm |
Flexural Strength: |
1000 MPa |
Hardness: |
1400 HV |
Material: |
Zirconia Toughened Alumina |
Max Operating Temperature: |
1700°C |
Thermal Conductivity: |
20 W/mK |
Thermal Expansion Coefficient: |
8.5 X 10^-6 /°C |
Wear Resistance: |
High |
Product Description

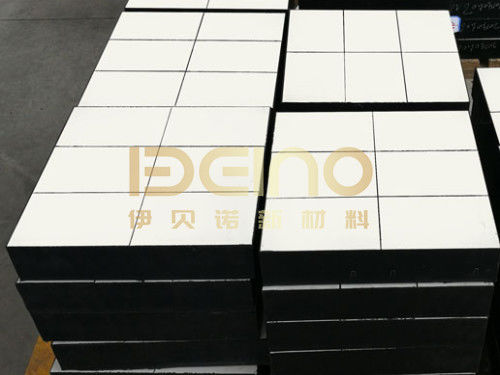

ZTA Wear Ceramic Liner is a zirconium aluminum composite ceramic. The ceramic vulcanization process is used to embed the ceramic vulcanization into the rubber or the ceramic rubber is directly vulcanized on the steel plate. The back of the steel plate is equipped with countersunk bolts, which is easy to install.
ZTA technical parameters
| Items | Specifications |
| Al2O3 | ≥75% |
| Zirconia | ≥21% |
| Density | 4.2 g/cm3 |
| Compressive Strength | ≥ 1400 Mpa |
| Rockwell Hardness | ≥ 90 HRA |
| Vickers Hardness | ≥ 1350 HV10 |
| Fracture Toughness (KIC) | ≥ 5.5 Mpa.m1/2 |
| Bending Strength | ≥ 350 Mpa |
| Wear Volume | ≤ 0.009 cm3 |
| Tensile Strength (TSB) | ≥ 15 Mpa |
| Rubber | Natural |
| Natural | ≥450 |
| Elongation | 450% |
Products Feature
ZTA Wear Ceramic Liner has a higher density than alumina products, better wear resistance, greatly improved toughness, lower price than zirconia products, and outstanding cost performance. The proportion is between 4.2 and 4.3g/cm3. Mainly used for vulcanized ceramic rubber composite liner. Made of zirconium aluminum ceramics and high strength natural rubber base mold, and a 6mm steel backing plate. All rubber ceramic liners are heat vulcanized together using special equipment, so the ceramic will still be in the rubber matrix to provide anti-wear and impact protection for the liner.
The conventional size of zirconium aluminum composite liner: is 147*97*25, 147*97*50, 100*75*50, it can also be customized according to drawings.
Conventional size of ceramic rubber composite liner: 330*330mm, which can also be customized according to drawings.
Product Application
ZTA Wear Ceramic Liner is suitable for chute and hopper of bulk material conveying system at room temperature
Production equipment introduction
The company has advanced wear-resistant ceramic production lines, isostatic pressing, automatic presses, vulcanizing machines, spray drying towers, etc., as well as steel structure production lines.
Product certification and product testing
Product design, manufacturing, and installation services are fully integrated into the ISO quality management system. Every process has a quality inspector for inspection. The company will sample the finished products and pass the performance inspection before leaving the factory.
