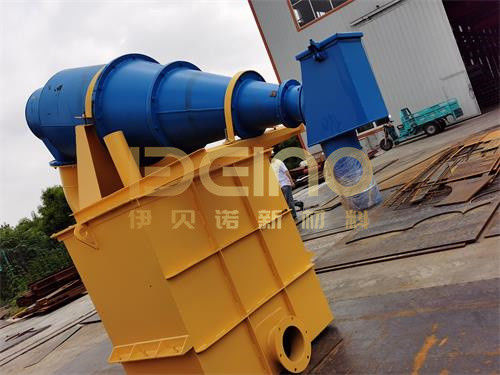

Customizable Size Ceramic Lined Equipment Alumina Cyclone Anti Wear

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Ceramic Lined Equipment

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Customizable Size Ceramic Lined Equipment

,

Anti Wear Ceramic Lined Equipment

Color:
White
Hardness:
HRA 80-90
Lining Impact Resistance:
Excellent
Material:
Ceramic
Lining Material:
Alumina
Corrosion Resistance:
Excellent
Pressure Rating:
Up To 10 Bar
Maximum Operating Temperature:
1000°C
Size:
Customizable
Heat Resistance:
High
Chemical Resistance:
Strong
Application:
Mining, Chemical, Power Generation, Etc.
Color:
White
Hardness:
HRA 80-90
Lining Impact Resistance:
Excellent
Material:
Ceramic
Lining Material:
Alumina
Corrosion Resistance:
Excellent
Pressure Rating:
Up To 10 Bar
Maximum Operating Temperature:
1000°C
Size:
Customizable
Heat Resistance:
High
Chemical Resistance:
Strong
Application:
Mining, Chemical, Power Generation, Etc.
Customizable Size Ceramic Lined Equipment Alumina Cyclone Anti Wear

Product Description

Cyclone anti-wear ceramic can improve the wear resistance of heavy medium cyclones. When the heavy medium cyclone works, coal particles, magnetic powder, and water produce strong rotational motion inside the cyclone under a certain power. Accompanied by the huge centrifugal force, a certain gradient density field is formed, and the inner wall of the cyclone is severely worn under the severe scouring of the coal gangue suspension. The most seriously worn parts of the intermediate cyclone separator are the tangent point of the guide cylinder, the lower part of the vertebral body, and the vicinity of the underflow port. Cyclone anti-wear ceramics are widely used because of their super-wear resistance.



Cyclone anti-wear ceramic lined alumina ceramic is a popular high-performance ceramic, which is widely used in various fields due to its high-cost performance. Combined with the current market demand for coal preparation, it is more appropriate to use alumina ceramics as wear-resistant linings for heavy medium cyclones, which can basically meet the requirements of the wear conditions of intermediate cyclones.

cyclone anti wear ceramicsCyclone lined with ceramicCyclone Ceramics

Product parameters

Items Specifications
Content of alumina ≥95%
Density ≥3.8 g/cm3
Rockwell A hardness ≥85HRA
Impact strength ≥1500 MPA
Fracture toughness ≥4.0MPa·m1/2
Bending Strength ≥330MPa
Thermal conductivity 20W/m.K
Thermal expansion coefficient 7.2×10 6m/m.K
Volume wear ≤0.02cm3

Product Features

1. The porcelain shape is designed according to the shape of the cyclone cylinder, cone tube, outlet tube, and other parts so that the structure is reasonable and has no gaps;

2. It is formed by 100 tons of dry pressing, with high density and excellent wear resistance;

3. The wear-resistant ceramic adopts high-strength viscose and staggered seam pasting process, and there is no linear gap, so the ceramic can be more firmly attached to the inner wall of the cyclone;

4. Paste the ceramics so that the height difference between the wear-resistant ceramics is within 0.5mm, maintain the large tangential velocity of the slurry in the cyclone, reduce the energy loss, and obtain a good classification and concentration effect.



Company Profile

Hunan Yibeinuo New Material Co., Ltd. is one of the most professional equipment anti-wear enterprises in China, mainly engaged in alumina wear-resistant ceramic products and wear-resistant equipment. It is located in the Economic Development Zone of Changsha City. The company is committed to the research development and production of industrial wear-resistant materials. To develop and promote grinding ceramics, the company's existing ceramic-lined cyclone separators are mainly made of 10MM ceramics, or customized according to customer requirements.



Packing and shipping

1. The transportation method is mainly by sea, and products with small and light samples can be transported by air.

2.  The samples are customized products and the delivery time is 7-15 days, and the standardized products will be shipped on the same day or the next day.

3. If customs clearance, please inform in advance before shipment.

4. Special packaging: according to customer needs.
