Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Concrete Pump Pipeline
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Tensile Strength: |
≥450Mpa |
Inner Diameter: |
125mm |
Working Pressure: |
85bar/130bar/200bar |
Application: |
Concrete Pumping |
Welding Technique: |
Automatic Welding |
Burst Pressure: |
220bar/260bar/400bar |
Package: |
Standard Exporting Package |
Connection Type: |
Clamp |
Welding Type: |
Automatic Welding |
Service Life: |
30,000-60,000m³ |
Tensile Strength: |
≥450Mpa |
Inner Diameter: |
125mm |
Working Pressure: |
85bar/130bar/200bar |
Application: |
Concrete Pumping |
Welding Technique: |
Automatic Welding |
Burst Pressure: |
220bar/260bar/400bar |
Package: |
Standard Exporting Package |
Connection Type: |
Clamp |
Welding Type: |
Automatic Welding |
Service Life: |
30,000-60,000m³ |
Product Description

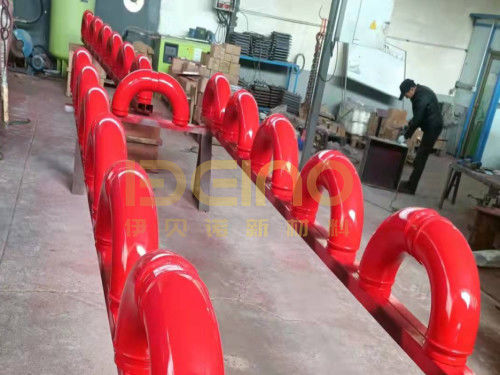

For Concrete Pump Elbows, we use the process of inserting the arc-shaped alumina ceramic sheet into the groove of the outer seamless carbon steel pipe and sticking it to the inner wall of the steel pipe with strong glue. It is used for the flange with serious wear. Using zirconia ceramic tiles. Ensure that it does not fall off under severe working conditions and prolongs the service life of the pipeline.
Product parameters
| Items | Specifications |
| Al2O3 | ≥ 99% |
| Density | >3.83g/cm3 |
| HV10 | ≥1300 |
| Rock Hardness HRA | ≥90 |
| Bending Strength MPa | ≥340 |
| Compression strength MPa | ≥1300 |
| Fracture Toughness KIc MPam 1/2 | ≥4.2 |
| Volume wear | ≤0.01cm3 |
Yibeinuo New Materials focuses on the research and development of new wear-resistant ceramic materials and is committed to providing material transportation, pneumatic conveying system engineering design, and various industries for cement, thermal power, steel, coal, ports, chemicals, new energy, mineral processing, machinery, and other industries. For equipment wear problems under complex working conditions, we have 15 years of industry experience in the field of wear-resistant materials. We provide a one-stop service from production to installation and can perform product design, research and development, production, and processing services according to customer needs.
Product Application
The wear-resistant ceramic Concrete Pump Elbows, as construction machinery used in conjunction with the concrete pump, is widely used in concrete engineering machinery pump trucks, such as Sany, Zoomlion, etc., and can also be used in pipe pile factories for making concrete electric poles, The main application products of the pipe pile factory are wear resistant ceramic cone pipes with large and small heads.
Factory introduction
The company's products have high strength, high hardness, wear resistance, and corrosion resistance. The products are exported to Japan, South Korea, Germany, the United States, the United Kingdom, Australia and other countries. The products are divided into the following series
1. Wear resistant ceramic sheet
2. Wear resistant ceramic liner
3. Wear-resistant ceramic composite pipelining
4. Wear a resistant ceramic tube for lithium battery
5. Ceramic bushing tee
6. Wear resistant ceramic roller encapsulation
7. The overall equipment is lined with ceramics
8. Accessories for construction machinery——wear-resistant ceramic Concrete Pump Elbows, ceramic transition sets.
Contact information
If you have any requirements, please feel free to contact us, and we will reply to you as soon as possible
Add: No. 2, Qingyuan South Road, Langli Industrial Park, Changsha County, Hunan Province
Tel:+86 15074879989
Email:Amy@ybnceramic.com
wechat/whatsapp:+86 15074879989
Welcome to contact us
Best regards
Amy Huang
