Home > products > Concrete Pump Pipeline > Low Carbon Concrete Pump Pipeline Smooth Flat Customized High Hardness wear resistant ceramic concrete pump pipe

Low Carbon Concrete Pump Pipeline Smooth Flat Customized High Hardness wear resistant ceramic concrete pump pipe

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Concrete Pump Pipeline

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Low Carbon Concrete Pump Pipeline

,

Concrete Pump Pipeline Smooth Flat

,

Customized Concrete Pump Pipe

Applicable Model:
Floor Pump, Concrete Pump Truck
Material:
High-quality Steel
Package:
Standard Export Packing/Customized
Temperature Range:
-40°C To +100°C
Service Life:
30,000-60,000 Cubic Meters
Tensile Strength:
≥510Mpa
Bending Radius:
4D-7D
Application:
Concrete Pumping
Connection Type:
Clamp
Color:
Red/Blue/Green/Customized
Burst Pressure:
220 Bar, 330 Bar, 500 Bar, Or Customized
Welding Type:
Automatic Welding
Applicable Model:
Floor Pump, Concrete Pump Truck
Material:
High-quality Steel
Package:
Standard Export Packing/Customized
Temperature Range:
-40°C To +100°C
Service Life:
30,000-60,000 Cubic Meters
Tensile Strength:
≥510Mpa
Bending Radius:
4D-7D
Application:
Concrete Pumping
Connection Type:
Clamp
Color:
Red/Blue/Green/Customized
Burst Pressure:
220 Bar, 330 Bar, 500 Bar, Or Customized
Welding Type:
Automatic Welding
Low Carbon Concrete Pump Pipeline Smooth Flat Customized High Hardness wear resistant ceramic concrete pump pipe

Product Description

The outer tube of the wear-resistant ceramic concrete pump pipe is made of a low-carbon seamless steel tube, which can withstand high pressure. The pipeline is lined with zirconium aluminum ceramics, which is super wear-resistant. The inner wall surface of the pipeline is smooth and flat. The material transportation does not cause material hanging and pipe blockage. Ceramic bending can be provided. Tubes, ceramic straight tubes, and ceramic reducing tubes can also be customized.

wear resisting Pump ElbowWear resistant pump pipe

Items Specifications
Al2O3 ≥75%
Zirconia ≥21%
Density 4.2 g/cm3
Compressive Strength ≥ 1400 Mpa
Rockwell Hardness ≥ 90 HRA
Vickers Hardness ≥ 1350 HV10
Fracture Toughness (KIC) ≥ 5.5 Mpa.m1/2
Bending Strength ≥ 350 Mpa
Wear Volume ≤ 0.009 cm3
Tensile Strength (TSB) ≥ 15 Mpa
Rubber Natural
Natural ≥450
Elongation 450%

Product parameters

Items Specifications
Al2O3 ≥ 99%
Density >3.83g/cm3
HV10 ≥1300
Rock Hardness HRA ≥90
Bending Strength MPa ≥340
Compression strength MPa ≥1300
Fracture Toughness KIc MPam 1/2 ≥4.2
Volume wear ≤0.01cm3

Products Feature

The wear resistant ceramic concrete pump pipe is a highly durable and efficient product that is designed to withstand wear and tear in a high-pressure environment. The pipe is made from a combination of materials, including ceramic and concrete, that provide superior wear resistance, long service life, and high hardness.

One of the key features of the wear resistant ceramic concrete pump pipe is it's lightweight, which makes it easy to handle and install. Despite its lightweight design, the pipe is highly resistant to pressure, with a smooth inner wall that prevents blockages and ensures efficient fluid flow.

Another important feature of the wear-resistant ceramic concrete pump pipe is its excellent toughness, which enables it to withstand the rigors of heavy-duty pumping applications. The pipe is also designed to last for a long time, reducing the need for repairs and replacements.

Using the wear-resistant ceramic concrete pump pipe can save time, effort, and cost, as it eliminates the need for frequent repairs and maintenance. This can help to significantly reduce labor intensity for workers, allowing them to work more efficiently and safely.

Overall, the wear-resistant ceramic concrete pump pipe is a high-quality product that is ideal for a wide range of pumping applications. Its combination of durability, efficiency, and performance make it an excellent choice for any industry that requires reliable and efficient fluid transport.



Company Profile

Yibeinuo New Material is a highly reputed national high-tech manufacturing enterprise that holds expertise in R&D, design, manufacturing, and technical services in the domain of domestic wear-resistant ceramics. The company has established a strong influence on the domestic wear-resistant industry over the years.

The company prides itself in offering a wide range of products that are suitable for various industries such as steel, cement, coal, and ports. Additionally, their products are extensively used in chemical, lithium battery, mineral processing, and construction machinery industries, and are popularly exported to Southeast Asia, South Korea, Japan, Australia, Europe, the United States, and other countries.

Yibeinuo New Material has established a strong market reputation for providing high-quality wear-resistant ceramics that are durable, efficient, and cost-effective. Their advanced manufacturing techniques use cutting-edge technology to create top-of-the-line products that cater to the specific needs of their customers.

In conclusion, Yibeinuo New Material is a reliable and trustworthy partner for companies that require wear-resistant ceramics, providing excellent and efficient services to their clients worldwide. With its reliable products and excellent customer service, the company has managed to build an impressive track record of success in this industry and continues to stay at the forefront



How much is the pipeline delivery volume of a wear-resistant ceramic pump truck?

Because of the long-term erosion of concrete and gravel, the pump pipe of the concrete pump truck is seriously worn and needs to be replaced frequently, which wastes a lot of manpower and material resources. The urgent needs of many related enterprises. After years of painstaking research, our company has developed a wear-resistant ceramic pump truck pipeline, which has been highly recognized by the market. So how much is the pipeline delivery volume of the ceramic pump truck?

The amount of material delivered by the pump pipe is one of the most concerning issues, but we can't generalize it. We need to analyze it according to the type of pipeline, location, and material that is not used.



Wear-resistant ceramic boom pipe

The inner lining of the wear-resistant ceramic jib elbow is made of high wear-resistant fine ceramics, the outer pipe is made of high-toughness low-carbon seamless steel, and the flanges of the two ports are made of ultra-fine wear-resistant ceramics. Under the condition of conveying ordinary commercial concrete, the conveying volume of the ordinary wear-resistant ceramic elbow can reach 120,000 cubic meters, and the conveying volume of the penultimate ultra-wear-resistant ceramic elbow can reach 60,000 cubic meters.



All-ceramic boom straight tube

The structure of the all-ceramic jib straight pipe and the wear-resistant ceramic jib elbow is basically the same, but because of its relatively light wear at its location, the conveying volume can reach 120,000 cubic meters in the case of conveying ordinary commercial concrete.



Wear-resistant ceramic turntable curved straight pipe

Wear-resistant ceramic turntable curved straight pipes can transport up to 120,000 cubic meters of ordinary commercial concrete.



Wear-resistant ceramic turntable cone tube

The wear-resistant ceramic turntable conical pipe can transport up to 120,000 cubic meters when transporting ordinary commercial concrete.



Package

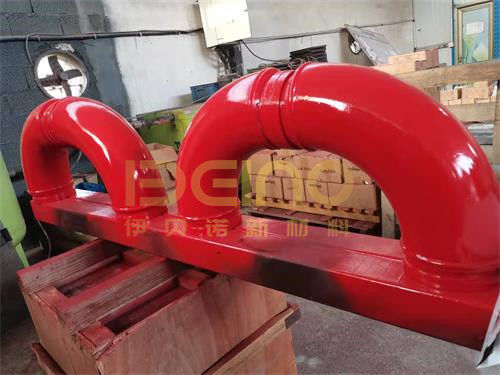

wear resisting Pump Elbowconcrete pump spare parts
