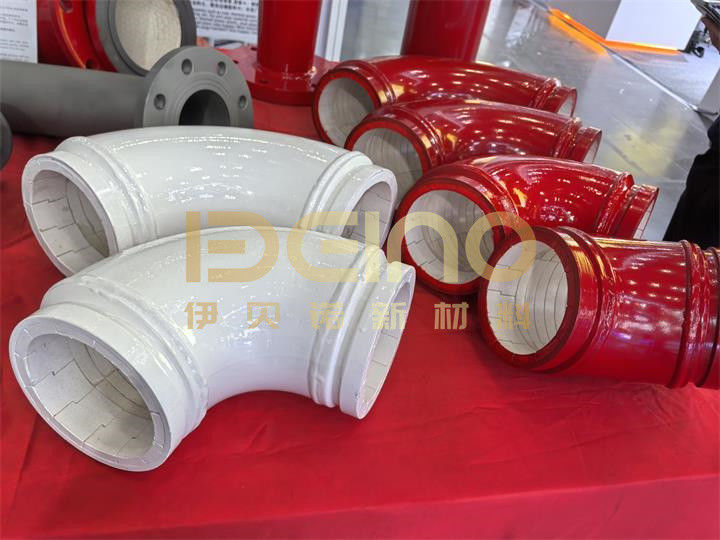

Wear-Resistant Ceramic Lined Concrete Pump Pipe Fittings

​Product Description

Concrete pump fittings do not wear evenly. Elbows, reducers, transition sections, and connection areas receive more concentrated contact from aggregates because the concrete changes direction or velocity at these positions. In many pumping systems, these fittings require replacement earlier than the adjoining straight pipe.

ELACERA ceramic-lined concrete pump pipe fittings combine a steel outer pipe with an internal ZTA ceramic wear layer. The steel structure carries the mechanical and pressure loads, while the ceramic protects the surface in direct contact with the concrete.

Why Pump Fittings Wear Faster

As concrete passes through a bend, the aggregate is forced toward the outer radius. A similar concentration of wear occurs where the pipe diameter changes or where two components are not properly aligned.

The actual wear pattern depends on several factors:

• Bend angle and centerline radius
• Concrete composition and aggregate size
• Pumping pressure and conveying speed
• Internal diameter of the adjoining pipe
• Location of the fitting in the pumping line
• Frequency of starting, stopping, and cleaning

For this reason, ceramic thickness alone should not be used to judge the expected working life. The lining layout, fitting geometry, connection accuracy, and installation position also need to be considered.

Steel Support with a ZTA Ceramic Wear Surface

The outer steel pipe provides the strength required for installation, connection, and operation. ZTA ceramic components are installed on the inner surface to protect the main wear area.

ZTA, or zirconia-toughened alumina, combines the hardness of alumina with improved fracture toughness. This makes it suitable for pump pipe fittings where both abrasion and repeated aggregate impact must be considered.

The ceramic is the wear-resistant layer rather than the pressure-retaining structure. The steel pipe, welds, flanges, clamps, and other connecting parts must therefore be selected according to the working pressure and equipment design.

Available Pipe and Fitting Configurations

The ceramic lining structure can be applied to different concrete pump pipeline components, including:

• Straight concrete pump pipes
• Concrete pump elbows
• Reducer pipes
• Transition fittings
• Pump truck boom pipe sections
• Placing boom pipe sections
• Customized fittings manufactured from drawings

Dimensions and connections should match the existing pumping system. Two fittings with the same nominal diameter may still differ in outside diameter, wall thickness, bend radius, coupling profile, and finished internal bore.

Typical Product Specifications

The specifications above refer to common configurations. Final dimensions, allowable pressure, ceramic layout, and connection details should follow the approved production drawing.

Typical ZTA Ceramic Properties

These are typical material values rather than guaranteed values for every finished assembly. Final requirements should be confirmed according to the ceramic formulation and order specification.

Connection and Bore Alignment

The transition between the ceramic-lined fitting and the adjoining pump pipe should be as smooth as practical. A raised ceramic edge, exposed steel section, or sudden change in internal diameter may interrupt the concrete flow and create a local wear point.

Before production, the following details should be checked:

• Finished internal diameter
• Outside diameter and steel wall thickness
• Bend angle and centerline radius
• Overall and straight-end lengths
• Clamp, flange, or welded connection dimensions
• Direction and location of the main wear area
• Allowable dimensional tolerances
• Required working pressure

For replacement components, a confirmed drawing or physical sample is preferable to relying only on the nominal pipe diameter.

Installation and Inspection

Before installation, inspect the ceramic lining for cracks, loose sections, and damage around the pipe ends. The fitting should connect concentrically with the adjacent pipe, without an internal step that directly faces the concrete flow.

Clamps, seals, flanges, and welds should be checked according to the pump system requirements. After installation, the line should be inspected for correct orientation, particularly when an elbow has a reinforced outer-radius wear zone.

The fitting should also be examined during scheduled maintenance. Wear around the connection ends and outer radius may indicate misalignment, an unsuitable installation position, or a change in operating conditions.

Typical Applications

Ceramic-lined concrete pump pipe fittings are used in concrete conveying systems for:

• Concrete pump trucks
• Stationary concrete pumps
• Placing booms
• High-rise building construction
• Bridge and tunnel projects
• Precast concrete production
• Other abrasive concrete pumping operations

FAQ

Why is ZTA ceramic used in concrete pump fittings?

ZTA ceramic provides high hardness together with greater fracture toughness than conventional alumina grades. This combination is useful where abrasive aggregates and repeated impact occur at the same position.

Can the fittings replace existing concrete pump pipe components?

Yes, provided that the outside diameter, finished bore, bend radius, overall length, and connection profile match the existing pipeline. These details should be confirmed before manufacturing.

Can elbows and reducers be customized?

Yes. Bend angle, centerline radius, inlet and outlet diameters, wall thickness, ceramic layout, connection type, and overall dimensions can be manufactured according to approved drawings.

Is the ceramic responsible for containing the pumping pressure?

No. The ceramic acts as the internal wear-resistant layer. Pressure containment depends on the steel pipe, wall thickness, welds, flanges, clamps, and the overall design of the assembly.

Can a fixed service life be guaranteed?

Service life varies with the installation position, aggregate composition, pumping pressure, conveying volume, cleaning method, and pipe alignment. Operating conditions should be reviewed before estimating expected performance.

ELACERA manufactures ceramic-lined concrete pump pipe sections, elbows, reducers, and transition fittings according to confirmed drawings. Dimensions and connection details are checked before production so that the finished component can match the existing pumping line.
