Highlight:

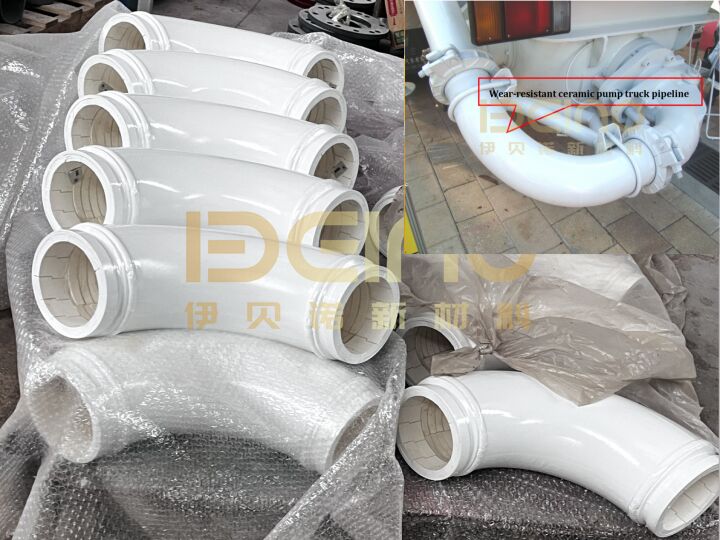

New Zirconia-Alumina Ceramic Concrete Pump Pipe for High Wear Resistance
Product Description
In modern construction projects, concrete pump trucks are widely used in high-rise buildings, bridge construction, and large infrastructure projects. However, during concrete transport, gravel particles and high-pressure flow cause severe wear on conventional steel pump pipes, resulting in a short service life and high maintenance costs.
To address this issue, Hunan Yibeinuo New Material Co., Ltd. has developed a zirconia–alumina composite ceramic concrete pump pipe. The product adopts a low-carbon seamless steel outer shell combined with a high-hardness ceramic lining, providing excellent performance in high-wear and high-impact environments.
The ceramic lining is made from alumina and zirconia composite materials, whose hardness is second only to diamond. Compared with ordinary carbon steel pump pipes, ceramic pump pipes can have a service life of 5–10 times longer, significantly reducing replacement frequency and maintenance costs.
In addition, the ceramic inner wall becomes smoother during operation, reducing material adhesion and preventing pipe blockage, which improves concrete conveying efficiency.
Product Features
Super Wear Resistance: The zirconia-alumina composite ceramic lining provides hardness up to ≥90 HRA.
Extended Service Life: The service life is 5–10 times longer than ordinary steel pipes.
Smooth Inner Surface: The ceramic lining becomes smoother during operation, reducing material adhesion.
High Pressure Resistance: The pipeline can withstand up to 100 MPa pressure.
Easy Installation: Standard clamp interface enables quick installation and seamless connection with steel pipes.
Product parameters
| Items |
Specifications |
| Al2O3 |
≥75% |
| Zirconia |
≥21% |
| Density |
4.2 g/cm3 |
| Compressive Strength |
≥ 1400 Mpa |
| Rockwell Hardness |
≥ 90 HRA |
| Vickers Hardness |
≥ 1350 HV10 |
| Fracture Toughness (KIC) |
≥ 5.5 Mpa.m1/2 |
| Bending Strength |
≥ 350 Mpa |
| Wear Volume |
≤ 0.009 cm3 |
| Tensile Strength (TSB) |
≥ 15 Mpa |
| Rubber |
Natural |
| Natural |
≥450 |
| Elongation |
450% |
Product Advantages
Lower maintenance and replacement costs
Reduced equipment downtime
Improved concrete pumping efficiency
Reduced conveying pressure
Extended pump truck service life
Applications
This product is primarily used in concrete conveying systems, including:
Concrete pump truck conveying pipelines
Building construction projects
Bridge and tunnel construction
Water conservancy projects
Large-scale infrastructure projects
Applicable to the following pump truck brands: SANYZoomlionPutzmeisterXCMGSSchwing
About Our Company
Hunan Yibeinuo New Material Co., Ltd. is a professional manufacturer specializing in wear-resistant ceramic products. The company focuses on providing anti-wear technology solutions for industrial equipment.
Our main products include:
Ceramic pump truck pipelines
Wear-resistant ceramic sheets
Ceramic composite pipes
Ceramic elbows
Wear-resistant ceramic liners
Our products have been exported to more than 26 countries and regions worldwide and are widely used in construction, mining, and industrial applications.
FAQ
Q1 What is the service life of ceramic pump pipes?
A1:The service life is 5–10 times longer than ordinary steel pipes. The boom straight pipe can reach 120,000 m³, while the ceramic elbow can reach 60,000 m³.
Q2: Why is the price higher than that of ordinary pipes?
A2:The pipeline uses high-value wear-resistant ceramic lining, and the manufacturing process is more complex. Although the initial cost is higher, the long service life provides better cost performance.
Q3:Is installation difficult?
A3:No. The ceramic pump pipeline adopts standard clamp interfaces, making installation identical to conventional steel pipes.
Q4: Can the ceramic pump pipe withstand high pressure during concrete pumping?
A4:Yes. The pump pipe is manufactured using low-carbon seamless steel pipes and can withstand pressures of up to 100 MPa, making it suitable for high-pressure concrete pumping operations.
Q5:Can you provide customized pump pipe specifications?
A5:Yes. We can manufacture ceramic straight pipes, ceramic elbows, reducing pipes, and special pump pipeline components according to customer drawings or technical requirements.
Q6: What is your delivery time and packaging method?
A6:Regular models are usually in stock, while customized products typically require 15–20 days for production.
All products are packed in fumigation-free wooden cases to ensure safe international transportation.
