Wear Resistant Ceramic Pipes ISO Certificate In Power Plants

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Wear Resistant Ceramic Pipe

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Wear Resistant Ceramic Pipes

,

Power Plants Ceramic Pipe

Product Name:
Wear Resistant Ceramic Pipe
Color:
White
Impact Resistance:
Excellent
Shape:
Pipe
Surface:
Smooth
Temperature:
High
Chemical Resistance:
Strong
Corrosion:
Resistant
Installation Type:
Welding/Clamping
Material:
Ceramic
Weight:
Light
Product Name:
Wear Resistant Ceramic Pipe
Color:
White
Impact Resistance:
Excellent
Shape:
Pipe
Surface:
Smooth
Temperature:
High
Chemical Resistance:
Strong
Corrosion:
Resistant
Installation Type:
Welding/Clamping
Material:
Ceramic
Weight:
Light
Wear Resistant Ceramic Pipes ISO Certificate In Power Plants

Product Description

Ceramic pipes in power plants have wear resistance, corrosion resistance, and heat resistance. They can be widely used in electric power, cement, metallurgy, mining, coal, chemical industries, and other industries as a medium for conveying sand, coal, ash, and slag. It is an ideal resistance Grinding pipe, ceramic wear-resistant pipes can be divided into alumina ceramic pipes and silicon carbide ceramic pipes. Ceramic pipes in power plants are divided into ceramic patch wear-resistant pipes and self-propagating ceramic pipes according to their structural forms.

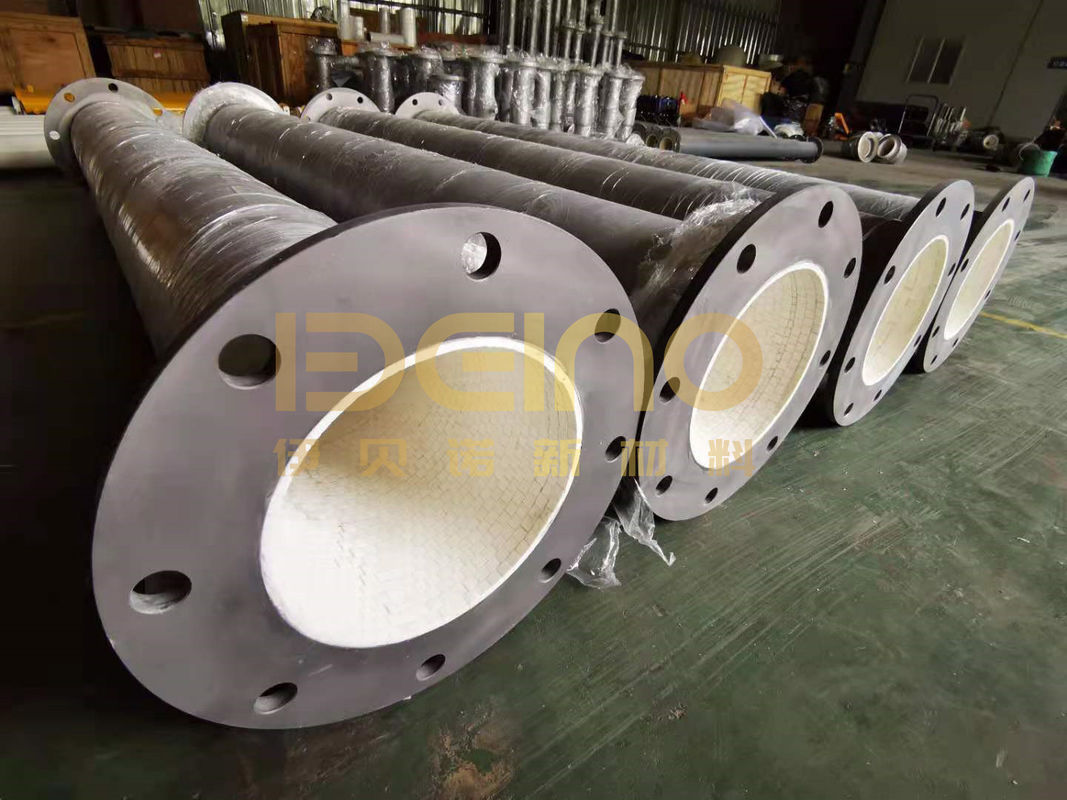

Wear Resistant Ceramic Pipes ISO Certificate In Power Plants 0Wear Resistant Ceramic Pipes ISO Certificate In Power Plants 1

Ceramic technical parameters

Items Specifications
Al2O3 ≥95% ≥ 99%
Density >3.8g/cm3 >3.83g/cm3
HV10 ≥1200 ≥1300
Rock Hardness HRA ≥85 ≥90
Bending Strength MPa ≥330 ≥340
Compression strength MPa ≥1200 ≥1300
Fracture Toughness KIc MPam 1/2 ≥4.0 ≥4.2
Volume wear ≤0.02cm3 ≤0.01cm3

Product selection

Our principle of product structure selection is based on the conclusions drawn from our 15 years of follow-up and experience summary of the field conditions used in major power plants. Under the premise of meeting customer needs and ensuring the safety of equipment operation, we choose the cost-effective best anti-wear solution. We generally design a service life of more than 8 years, which saves customers to the greatest extent.



Pipeline selection

The particles conveyed by the powder feeding pipeline of the power plant have relatively high hardness, a certain pressure, flow rate, and temperature (the temperature is generally around 150 degrees). Under this operating condition, the equipment wears very seriously. Compared with straight pipes, the wear of elbows is more severe. Seriously, ordinary pipes can be worn within one year, and ceramic pipes in power plants can increase their service life by 8-10 times.



We recommend using direct adhesive patch ceramics. The pipeline is lined with alumina ceramics with a thickness of 5mm. The inorganic adhesive is used for staggered paste inside the pipeline to form a mechanical self-locking force to ensure the ceramic does not fall off.



Company Profile

Yibeinuo New Materials is a national high-tech manufacturing enterprise integrating R&D, design, manufacturing, and technical services in domestic wear-resistant ceramics. It has a certain influence on the domestic wear-resistant industry. Ceramic lined pipes are widely used in steel, cement, Coal, port, chemical, lithium battery, mineral processing, construction machinery, and other industries and are exported to Southeast Asia, South Korea, Japan, Australia, Europe, and the United States and other countries, and are well received by users at home and abroad!



Introduction of factory and production workshop

The company's products have high strength, high hardness, wear resistance, and corrosion resistance. The products are exported to Japan, South Korea, Germany, the United States, the United Kingdom, Australia and other countries. The products are divided into the following series

1. wear resistant ceramic sheet

2. wear resistant ceramic liner

3. Resistant ceramic composite pipelining

4. wear-resistant ceramic elbow (Lithium battery elbow)

5. wear resistant ceramic roller encapsulation

6. The whole equipment is lined with ceramics

7. Accessories on construction machinery-ceramic pump tube, ceramic transition sleeve
