Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Alumina Ceramics
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Chemical Resistance: |
Excellent |
Color: |
White |
Density: |
3.7 G/cm3 |
Material: |
Alumina |
Maximum Operating Temperature: |
1700°C |
Mechanical Strength: |
High |
Other Name: |
Abrasion Resistant Ceramic |
Rockwell Hardness: |
85 HRA |
Chemical Resistance: |
Excellent |
Color: |
White |
Density: |
3.7 G/cm3 |
Material: |
Alumina |
Maximum Operating Temperature: |
1700°C |
Mechanical Strength: |
High |
Other Name: |
Abrasion Resistant Ceramic |
Rockwell Hardness: |
85 HRA |
Product Description

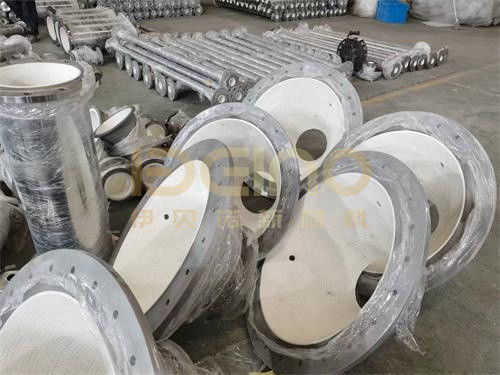

Alumina Ceramic Tile is an indispensable equipment for conveying powder in the cement industry. Its function is to send the air-powder mixture into the furnace for combustion at a long distance. The outer shell of it is made of steel, and the inner lining is alumina ceramic with excellent wear resistance, which not only exerts the high-temperature wear resistance and corrosion resistance of alumina ceramic but also exerts the characteristics of high strength and high toughness of metal materials. It is designed for easy replacement and installation.
Product Performance
The ceramic elbow has good corrosion resistance, is lightweight, and can be installed easily. The surface of the alumina ceramic elbow is smooth and not easy to accumulate. The Al2o3 ceramic raw material is a close-packed hexagonal structure composed of oxygen ions, and aluminum ions are filled in two-thirds of the eight-sided gap, which is as stable as the diamond structure. Therefore, ceramics have high melting points, high toughness, and good wear resistance. The strength of the ceramic patch type is ≥ HRA85, which is close to the strength of a diamond, the surface is smooth and clean, the friction resistance is small, and the wear resistance is quite ideal. Even in high temperatures, air oxidizing substances, or corrosive media, the performance of ceramic chip materials is still much stronger than other metal materials. From the actual effect of anti-corrosion, the performance of wear-resistant ceramic elbow is about 5 times that of composite ceramic elbow.
Installation method
The installation methods of Alumina Ceramic Tile mainly include welding connection and flange connection. Flange connection can be divided into welding flange, flange retaining ring, and movable flange. Flange retaining ring and movable flange are usually used together:
1. Welded flanges: Welded flanges can be directly welded to wear-resistant ceramic pipes. The flange holes are usually centered or mid-span. The outer side of the flange usually has a slight thickness step with 2-3 sealing water lines to strengthen the sealing effect, the welding flange is fixed after welding and cannot be moved;
2. Flange retaining ring: the retaining ring is used in conjunction with the movable flange to block the movable flange from leaving the wear-resistant ceramic pipe, usually with a sealing waterline to enhance the sealing effect;
3. Movable flange: The inner diameter of the movable flange is larger than that of the welded flange, which is convenient for moving on the pipeline. The movable flange is directly inserted into the wear-resistant ceramic pipe, and the end of the pipe is welded with a retaining ring. The movable flange can be 360 degrees. Rotation is easy to adjust the position of the pipe during installation, usually used for elbows and tees.
There are usually certain rules for the selection of flanges for wear-resistant ceramic pipes. Welding flanges are usually used on straight pipes. One end of the elbow uses a welded flange and the other end uses a movable flange, or both ends use welded flanges. Usually, two straight pipes use movable flanges, or three movable flanges are used directly, which is easy to adjust during installation, more convenient to install, and easy to disassemble.
Technical parameters
Items | Specifications | |
Content of alumina | ≥92% | ≥95% |
Density | ≥3.6 g/cm3 | >3.8g/cm3 |
Rockwell A hardness | ≥82HRA | ≥85HRA |
Impact strength | ≥1200 MPA | ≥1500 MPA |
Fracture toughness | ≥3.8MPa·m1/2 | ≥4.0MPa·m1/2 |
Vickers hardness | ≥1150HV10 | ≥1200HV10 |
Bending Strength | ≥290MPa | ≥330MPa |
Our Advantages
1. The manufacturing process of the one-piece wear-resistant alumina ceramic pipes meets the ISO9001 standard.
2. We can provide customers with free samples and deliver them within 24 hours
3. The fast delivery time is 25-30 days
4. Provide OEM and buyer-label service.
5. High quality, competitive price, excellent service
Packing and shipping
1. According to the product size of the one-piece wear-resistant alumina ceramic pipes, the company has special personnel to design and customize the packaging according to the drawings.
2. The packaging forms include fumigation-free wooden boxes and iron shelf packaging. The packaging method is selected according to the weight and structure of the product.
3. The label will be affixed on the outside of the package.
4. The outside of the product or wooden box will be packaged with bubble film or cling film, to prevent rust and not be wet by rain
The relevant inspection reports or shipping lists of the goods will be sent with the goods or sent to customers in electronic form.
