Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Rubber Ceramic Liners
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Application: |
Wear Protection |
Corrosion Resistance: |
Excellent |
Density: |
3.6-3.8g/cm3 |
Elongation: |
≥250% |
Flexural Strength: |
≥ 300 MPa |
Hardness: |
60-65 Shore A |
Liner Type: |
Ceramic Liner |
Material: |
Rubber And Ceramic |
Shape: |
Square Or Rectangle |
Size: |
Customizable |
Surface Finish: |
Smooth Or Textured |
Tensile Strength: |
10-20 MPa |
Application: |
Wear Protection |
Corrosion Resistance: |
Excellent |
Density: |
3.6-3.8g/cm3 |
Elongation: |
≥250% |
Flexural Strength: |
≥ 300 MPa |
Hardness: |
60-65 Shore A |
Liner Type: |
Ceramic Liner |
Material: |
Rubber And Ceramic |
Shape: |
Square Or Rectangle |
Size: |
Customizable |
Surface Finish: |
Smooth Or Textured |
Tensile Strength: |
10-20 MPa |
Product Description

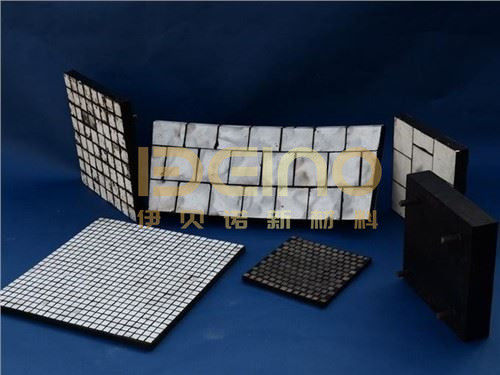

The three in one ceramic rubber liner adopts the hot vulcanization process to vulcanize the ceramics in the steel plate. The back of the steel plate is equipped with bolts. The size can be customized according to the on-site working conditions and equipment. It is suitable for the transportation of bulk materials and large impact in the normal temperature environment. equipment.
Alumina ceramic technical parameters
| Items | Specifications |
| Content of alumina | ≥92% |
| Density | ≥3.6 g/cm3 |
| Rockwell A hardness | ≥82HRA |
| Impact strength | ≥1200 MPA |
| Fracture toughness | ≥3.8MPa·m1/2 |
| Vickers hardness | ≥1150HV10 |
| Bending Strength | ≥290MPa |
Rubber technical parameters
| Items | Specifications |
| Pull apart strength | ≥12MPa |
| Pull apart prolongation | 250％ |
| Shore hardness | 55 65 |
| Permanent deform | ≤24％ |
| The shared stress between the ceramic and rubber | ≥3.0MPa |
| Temperature resistance | ≤100℃ |
| Aging life of rubber | ≥15 years |
Our Advantages
1. The factory is a manufacturing enterprise dedicated to the production, design and research, and development of wear-resistant ceramics for 15 years
2. Years of actual industry experience can provide the best and best anti-wear design plan for enterprise equipment
3. The perfect after-sales service system allows customers to have no worries
4. The three in one Ceramic rubber liner adopts the hot vulcanization process to vulcanize the ceramic sheet in the rubber. The back of the steel plate has a countersunk head bolt. The size of the lining can be made according to customer requirements.
Product Application
The three in one Ceramic rubber liner is mainly suitable for the chute and hopper of the bulk material conveying system at room temperature.
Features
1. The wear resistance is very good. It is not easy to wear under contact and friction with the material, so the equipment can be used for a long time without frequent replacement or maintenance. Therefore, it can reduce the operating cost and maintenance costs of the equipment and increase the service life of the equipment.
2. The chemical corrosion resistance is very good. It has good resistance to most acids, alkalis, and other chemical substances, and can be used in these environments for a long time without damage.
3. The high-temperature resistance is very good, and the wear-resistant ceramic liner can be used for a long time in a high-temperature environment without cracks and other problems.
4. It also has good impact resistance and compression resistance, even under heavy load, it will not produce cracks and other problems.
5. The production process of wear-resistant ceramic liners is good, and manufacturers can manufacture products suitable for different industries through different technologies. Commonly used manufacturing processes include spherical ceramics, flat ceramics, cylindrical ceramics, square ceramics, and different combination processes.
6. It can also be customized according to customer requirements and needs to meet different application scenarios. Wear-resistant ceramic linings provide strong, durable, highly protective materials for industrial applications. It ensures the extended life and reliability of machinery and equipment and also protects the environment and the safety of employees. As a representative of new industrial materials, it will better serve the field of industrial production and promote the development of industrial production together with traditional materials in continuous development.
Packing and shipping
1. The transportation method is mainly by sea, and products with small and light samples can be transported by air.
2. The samples are customized products and the delivery time is 7 to 15 days, and the standardized products will be shipped on the same day or the next day.
3. If customs clearance, please inform us in advance before the shipment
4. Special packaging: according to customer needs
