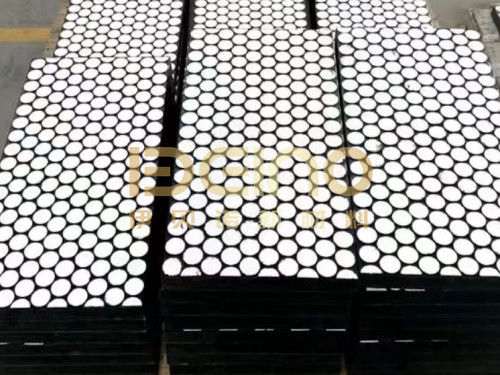

Impact Cushioning Ceramic Rubber Liner Thickness 25mm Alumina Ceramic Liner

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Rubber Ceramic Liners

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price

Impact Cushioning Ceramic Rubber Liner


25mm Alumina Ceramic Liner


25mm Ceramic Rubber Liner

Impact Cushioning Ceramic Rubber Liner Thickness 25mm Alumina Ceramic Liner

Product Description

The ceramic rubber liner board is an advanced wear resistant and impact-resistant ceramic composite board, suitable for high impact and severe wear conditions. Alumina ceramics have high wear resistance, and the rubber backing helps to relieve the impact of materials and reduce noise.

Impact Cushioning Ceramic Rubber Liner Thickness 25mm Alumina Ceramic Liner 0Impact Cushioning Ceramic Rubber Liner Thickness 25mm Alumina Ceramic Liner 1

Alumina ceramic technical parameters

Items Specifications
Content of alumina ≥92% ≥95%
Density ≥3.6 g/cm3 >3.8g/cm3
Rockwell A hardness ≥82HRA ≥85HRA
Impact strength ≥1200 MPA ≥1500 MPA
Fracture toughness ≥3.8MPa·m1/2 ≥4.0MPa·m1/2
Vickers hardness ≥1150HV10 ≥1200HV10
Bending Strength ≥290MPa ≥330MPa

Rubber technical parameters

Items Specifications
Pull apart strength ≥12MPa
Pull apart prolongation 250%
Shore hardness 55 65
Permanent deform ≤24%
The shared stress between the ceramic and rubber ≥3.0MPa
Temperature resistance ≤100℃
The aging life of rubber ≥15 years

Company Profile

Hunan Yibeinuo New Material Co., Ltd. has focused on the application of wear resistant materials for 15 years. It has a group of experienced technical and management personnel who can conduct product development, design, production, and processing of various wear resistant pipes and equipment according to customer needs. Ceramic rubber liner is one of the company's main products, which has a wide range of applications and is mainly used for anti-wear of material conveying system equipment. Such as coal falling hopper, falling coal pipe, ball mill inlet, outlet pipes, etc. It can also be applied to the coal conveying system of thermal power plants and the sintering plant of metallurgy and steel systems, the hoppers and silos of batching systems, and other parts with high drop and high impact.


Factory equipment introduction

The company has production and processing equipment such as vulcanizing machine, intermediate frequency hot simmering pipe bender, CNC cutting machine, lathe, punching machine, milling machine, sawing machine, radial drill, etc., and is equipped with professional equipment and technical personnel, with a certain scale of production capacity, ceramic rubber The lining adopts an advanced thermal vulcanization process to vulcanize ceramic and rubber together to form a strong and cushioning anti-wear layer.



Q: Are you a trading company or a manufacturer?

A: We are a manufacturing enterprise specializing in the production of wear resistant ceramic pipes, wear resistant ceramic liners, and ceramic linings for various equipment.


Q: What are your payment terms?

A: T/T 30% as the deposit, The balance payment is paid in full before shipment


Q: What is the packaging and transportation form?

A: Non-stealing wooden box and iron frame packaging. Special packaging is available according


Q: How long is your delivery time?

A: The delivery time of customized products is generally 25 35 days, and noncustomized products are generally shipped within 24 hours after payment.
