Home > products > Rubber Ceramic Liners > Rubber Ceramic Liners Ceramic Rubber Composite Liner

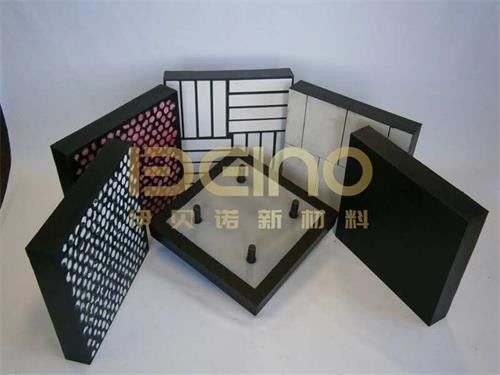

Rubber Ceramic Liners Ceramic Rubber Composite Liner

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Rubber Ceramic Liners

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Anti Dropping Rubber Ceramic Liners

,

Rubber Ceramic Liners ODM

,

ODM Ceramic Rubber Composite Liner

Application:
Mining, Cement, Steel, Power Generation, Etc.
Chemical Resistance:
Strong
Compressive Strength:
≥ 2000 MPa
Density:
3.6-3.8 G/cm3
Elongation:
≥250%
Liner Type:
Ceramic Liner
Service Life:
More Than 5 Years
Shape:
Square Or Rectangle
Size:
Customized
Surface Finish:
Smooth Or Textured
Thickness:
10-50mm
Wear Resistance:
Excellent
Application:
Mining, Cement, Steel, Power Generation, Etc.
Chemical Resistance:
Strong
Compressive Strength:
≥ 2000 MPa
Density:
3.6-3.8 G/cm3
Elongation:
≥250%
Liner Type:
Ceramic Liner
Service Life:
More Than 5 Years
Shape:
Square Or Rectangle
Size:
Customized
Surface Finish:
Smooth Or Textured
Thickness:
10-50mm
Wear Resistance:
Excellent
Rubber Ceramic Liners Ceramic Rubber Composite Liner

Product Description

Ceramic rubber composite liner, also known as wear-resistant rubber ceramic plate, adopts a thermal vulcanization process to vulcanize the vulcanized wear resistant ceramic and rubber together, and then paste it on the equipment steel plate with adhesive. The back has bolts and can be installed by yourself.

Rubber Ceramic Liners Ceramic Rubber Composite Liner 0Rubber Ceramic Liners Ceramic Rubber Composite Liner 1

Alumina ceramic technical parameters

Items

Specifications

Al2O3

≥95%

≥ 99%

Density

>3.8g/cm3

>3.83g/cm3

HV10

≥1200

≥1300

Rock Hardness HRA

≥85

≥90

Bending Strength MPa

≥330

≥340

Compression strength MPa

≥1200

≥1300

Fracture Toughness KIc MPam 1/2

≥4.0

≥4.2

Volume wear

≤0.02cm3

≤0.01cm3

Rubber technical parameters

Items

Specifications

Pull apart strength

≥12MPa

Pull apart prolongation

250%

Shore hardness

55 65

Permanent deform

≤24%

The shared stress between the ceramic and rubber

≥3.0MPa

Temperature resistance

≤100℃

The aging life of rubber

≥15 years

Products Feature

1. Wear resistance: The alumina ceramic of Ceramic rubber composite liners has a hardness above HRA88, and its wear resistance is 271.5 times that of manganese steel,it can extend the service life by 10 times.

2. Impact resistance and strong toughness

3. Anti dropping

4. Easy maintenance and replacement



Our Advantages

1. The manufacturing process of the ceramic rubber composite lining complies with the ISO9001 standard.

2. We can provide customers with free samples and deliver them within 24 hours

3. The fast delivery time is 25 to 30 days

4. Provide OEM and buyer-label service.

5. High quality, competitive price, excellent service



Factory introduction

The company's products have high strength, hardness, wear, and corrosion resistance. The products are exported to Japan, South Korea, Germany, the United States, the United Kingdom, Australia and other countries. The products are divided into the following series

1. Wear resistant ceramic sheet

2. Ceramic rubber composite liner

3. Wear-resistant ceramic composite pipelining

4. Wear a resistant ceramic tube for lithium battery

5. Ceramic bushing tee

6. Wear resistant ceramic roller encapsulation

7. The whole equipment is lined with ceramics

8. Accessories on construction machinery ceramic pump tube, ceramic transition sleeve



What is a Ceramic Rubber Composite Liner?

A Ceramic Rubber Composite Liner is a high-performance industrial material that combines the toughness and elasticity of rubber with the exceptional hardness and wear resistance of ceramics. The product is made by embedding ceramic tiles into a rubber matrix, creating a dense and durable layer that can withstand extreme operating conditions. The ceramic tiles are made from alumina, silicon carbide, or zirconium oxide, which are among the toughest materials known to man. By using these materials, we have created a product that provides unmatched protection against abrasion, corrosion, impact, and chemical attack.
