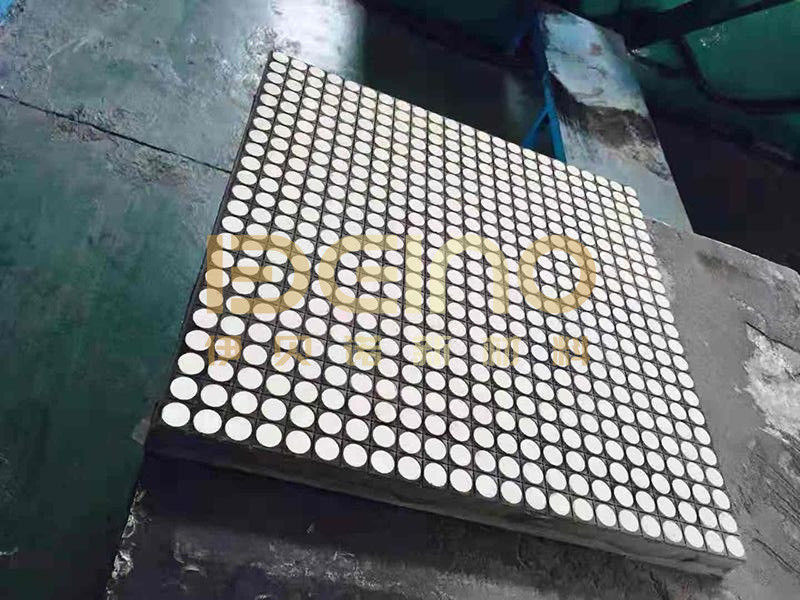

Cold Vulcanized Zirconia Toughened Alumina Ceramic Sheet Non Blocking

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Rubber Ceramic Liners

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Heat Vulcanized Zirconia Toughened Alumina

,

Heat Vulcanized Alumina Ceramic Sheet

,

Non Blocking Alumina Ceramic Sheet

Flexibility:
High
Density:
3.5-3.8 G/cm3
Material:
Rubber And Ceramic
Installation Method:
Adhesive Bonding Or Mechanical Fastening
Bonding Strength:
Excellent
Customizable Size:
Available
Abrasion Resistance:
Excellent
Lining Thickness:
6-50mm
Service Life:
More Than 5 Years
Lining Type:
Ceramic
Hardness:
60-65 Shore A
Application:
Wear And Impact Resistant Lining For Industrial Equipment
Flexibility:
High
Density:
3.5-3.8 G/cm3
Material:
Rubber And Ceramic
Installation Method:
Adhesive Bonding Or Mechanical Fastening
Bonding Strength:
Excellent
Customizable Size:
Available
Abrasion Resistance:
Excellent
Lining Thickness:
6-50mm
Service Life:
More Than 5 Years
Lining Type:
Ceramic
Hardness:
60-65 Shore A
Application:
Wear And Impact Resistant Lining For Industrial Equipment
Cold Vulcanized Zirconia Toughened Alumina Ceramic Sheet Non Blocking

Product Description

The rubber ceramic composite board is a special ceramic sheet embedded in special rubber through vulcanization, and the steel plate is heat-vulcanized and pressurized at 150°C to form a ceramic rubber steel plate three-in-one composite liner, forming a strong and cushioning anti-wear layer, which is fixed The active steel plate layer is provided with countersunk bolts. It is widely used as an anti-wear lining for coal conveying and ash discharge systems in thermal power plants, as well as silos and hoppers in the metallurgical steel industry's conveying and batching systems.



Enterprise introduction

Hunan Yibeinuo New Material Co., Ltd. is a manufacturing enterprise mainly producing alumina wear-resistant ceramic products and wear-resistant equipment. Specializing in the technical development of wear-resistant materials, product design and manufacturing, technical consultation, and on-site technical services.

The company has a complete set of advanced equipment for the production of wear-resistant products and maintains a good cooperative relationship with many domestic and foreign companies and scientific research institutions to ensure that it provides users with wear-resistant materials and engineering services. The company is committed to the production and development of industrial wear-resistant ceramics. Now it has formed eight categories of products including wear-resistant ceramic sheets, ceramic-lined pipes, wear-resistant ceramic composite pipes, ceramic roller encapsulation, rubber ceramic composite plates, equipment lining alumina ceramics, ceramic pump tubes, and ceramic transition sleeves. A professional construction team provides customers with equipment wear solutions and on-site construction services.

The company's products have the characteristics of high strength, high hardness, and good wear resistance. They mainly serve the thermal power, steel, cement, mine, smelting, port, chemical, engineering machinery, lithium battery and other industries.

Cold Vulcanized Zirconia Toughened Alumina Ceramic Sheet Non Blocking 0Cold Vulcanized Zirconia Toughened Alumina Ceramic Sheet Non Blocking 1

Features of rubber ceramic composite liner

1. Impact resistance: It has good cushioning performance, which can effectively cushion the impact caused by materials falling from a high altitude. To

2. Convenient construction: there is no gap after the liner is installed. The rubber composite liner can be twisted and cut and is suitable for installing various special-shaped equipment.

3. Non-sticking and non-blocking: Due to the high strength and corrosion resistance of ceramics, the phenomenon of equipment sticking and blocking is effectively solved.

4. Convenient replacement: The wear-resistant ceramic rubber composite plate has a lower density than steel plate, is lightweight and is easy to replace.



Two in one wear resistant ceramic liner

The two-in-one wear-resistant ceramic liner adopts a thermal vulcanization process to vulcanize the wear-resistant ceramic and rubber together, and then use a high-strength organic adhesive to bond the liner to a part that is easy to install or a part with a circular arc shape. Such as circular cone funnel, belt conveyor drive roller, etc., form a strong and cushioning anti-wear layer. It combines the advantages of the high hardness of ceramics and the high cushioning and anti-fatigue properties of rubber, and can well solve the problem of equipment wear during the transportation of bulk materials. The addition of rubber, in addition to having good anti-wear and anti-corrosion effects, can also prevent production shutdowns caused by material accumulation and blockage and effectively reduce environmental noise.



Three-in-one wear-resistant ceramic liner

The three-in-one wear-resistant ceramic liner adopts a hot vulcanization process to vulcanize wear-resistant ceramic and rubber on a steel plate with countersunk bolts. This composite liner is easy to install and is mainly used for square chutes, blanking pipes, and blocks. Protection of blanking points of shaped materials, wharf conveying equipment, mine transfer equipment, etc. It also combines the high hardness of ceramics and the high cushioning and anti-fatigue properties of rubber, which can well solve the problem of equipment wear during the transportation of bulk materials. The addition of rubber, in addition to having good anti-wear and anti-corrosion effects, can also prevent production shutdowns caused by material accumulation and blockage and effectively reduce environmental noise.

Ceramic linerRubber ceramic liner

Ceramic roller coating

The drum is the main component of the belt conveyor. It relies on the friction with the belt to drive the material carried on the belt conveyor to move forward. Due to the large amount of friction with the belt, it will cause serious wear on the surface of the drum and the belt. To solve this problem, we adopted a thermal vulcanization process to vulcanize the wear-resistant ceramic and rubber buffer layer together and then used a high-strength organic adhesive to firmly bond the buffer layer to the drum steel plate, and successfully developed a wear-resistant Porcelain rubber composite roller.



Advantages of wear-resistant ceramic rubber composite roller

Porcelain block, rubber layer, and roller form a firm, cushioning anti-wear layer.

Suitable for reorienting or driving rollers in extremely harsh working conditions such as conveying large output, highly abrasive and viscous wet materials, and impacts of bulk materials.

Long service life, generally no less than 8 years.

Ceramic rollerCeramic rubber sheet
