Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Rubber Ceramic Liners
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Product introduction
Alumina-toughened zirconia ceramics (also known as ZTA ceramics) are inorganic non-metallic wear-resistant materials, corrosion-resistant, chemically Good and stable, and have high alumina hardness. Zirconia has good toughness, and the two materials form an excellent composite with high strength and high toughness, which is more versatile.
Alumina-toughened zirconia ceramics have higher flexural strength and fracture toughness at room temperature, so ZTA ceramics have excellent wear resistance. The performance of ZTA ceramics is better than 99 alumina ceramics, and the price is much lower than that of zirconia ceramics; in many occasions where alumina ceramics are not competent, it shows a better cost performance than zirconia ceramics. It is widely used in machinery, mining, chemical, port, and other industries.

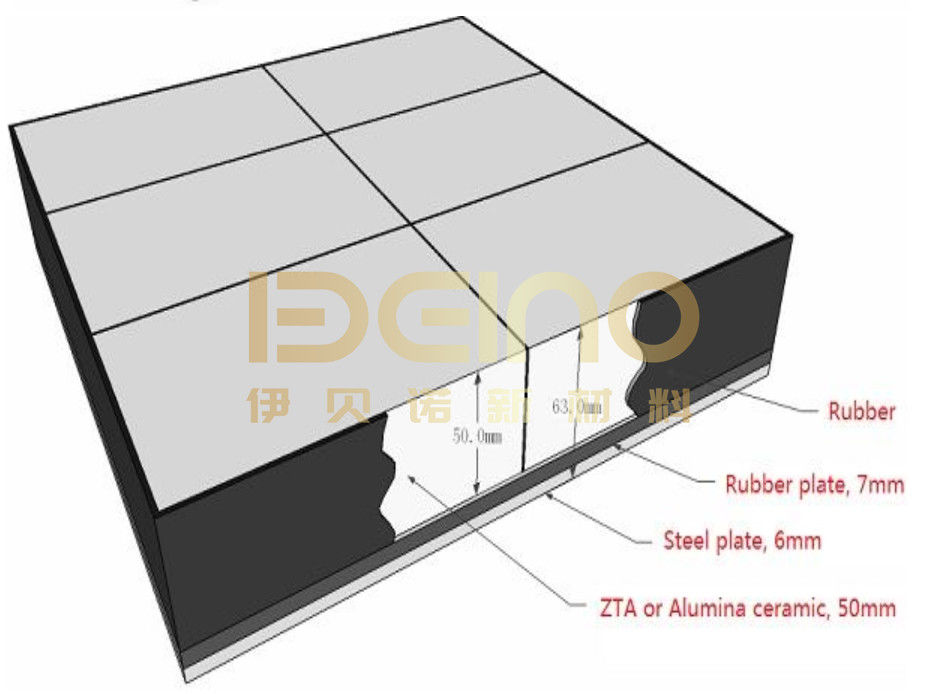

The Alumina toughened zirconia ceramic liner produced by our company uses the art of thermal vulcanization to vulcanize the ZTA ceramic to the steel plate through the rubber. The back is equipped with bolts to form a three-in-one ceramic liner with high wear resistance, impact resistance, and easy installation. is suitable for high-wear industries such as mines and ports with strong impact and large conveying materials. Zirconia toughened alumina ceramic three-in-one liner is 2.5 times the service life of alumina ceramic liner. At present, it is mainly concentrated on the application of chutes, hoppers, and other equipment, which are used in mines, ports, and other industries with large conveying capacity, large impact, and harsh working conditions.
Company Introduction
The company’s main products: are wear-resistant ceramic liners, pipeline lining ceramics, ceramic drum encapsulation, overall equipment lining ceramics, ceramic pump pipes, etc., mainly serving thermal power, cement, steel, ports, coal, ports, mineral processing, Engineering machinery and other industries, with rich on-site construction and installation experience, providing a series of supporting services from production to construction.
Technical parameters
| Items | Specifications | |
| Content of alumina |
Al2O3 ≥75% Zirconia≥21% |
≥95% |
| Density | ≥4.2 g/cm3 | >3.8g/cm3 |
| Rockwell A hardness | ≥90HRA | ≥85HRA |
| Impact strength | ≥1600 MPA | ≥1500 MPA |
| Fracture toughness | ≥5.5MPa·m1/2 | ≥4.0MPa·m1/2 |
| Vickers hardness | ≥1350HV10 | ≥1200HV10 |
| Bending Strength | ≥350MPa | ≥330MPa |
In actual use, ZTA ceramics are more wear-resistant than 95% alumina ceramics.
1. The corundum ceramic material has the characteristics of high-temperature resistance, high strength, good insulation, and lightweight. Due to the brittleness of the corundum ceramic material, its application range is limited. To overcome the brittleness of ceramics, a wide range of toughening methods include ZrO2 Toughness and fiber toughening. ZTA ceramics are fired using a tunnel resistance kiln isostatic pressing process.
2. Zirconia toughened alumina ceramics are based on alumina and add a certain amount of zirconia ceramics. The wear resistance and toughness are between alumina ceramics and zirconia ceramics.
3. In actual use, ZTA ceramics are more wear-resistant than 95% alumina ceramics, and cheaper than zirconia ceramics.
FAQ
Q: Are you a trading company or a manufacturer?
A: We are a manufacturing enterprise specializing in the production of wear-resistant ceramic pipes, wear-resistant ceramic liners, and ceramic linings for various equipment.
Q: What Yibeinuo Produce?
A: Pipelined ceramics (patch ceramic + integral ceramic ring)
Wear-resistant ceramic roller rubber coating.
Wear-resistant ceramic lining of hopper and chute
Cyclone lined with ceramic anti-wear
Concrete pipe pile (electric pole) industry pipe lined with wear-resistant ceramic
Ceramic + rubber vulcanized two-in-one sulfur liner
Ceramic + rubber + steel plate three-in-one vulcanized liner
Ceramic + steel plate two-in-one porcelain steel liner
Engineering machinery accessories (ceramic pump tube + ceramic transition sleeve)
Medium frequency hot simmering seamless steel pipe
Q:What Tecera provide?
A: Provide the best anti-wear design solution for equipment wear
Provide high-quality wear-resistant ceramics
Provide consulting services for industrial equipment wear
Provide engineering construction and installation services
Q: How to get a quotation?
A: Please provide product size (preferably drawings), steel parts and wear-resistant material requirements, operating conditions (temperature), material transportation and material particle size, pressure requirements, surface treatment, paint appearance color, and requirements, etc.
Q: ZTA ceramic or alumina ceramic which is more wear-resistant
A: ZTA ceramics is better
Q: How long is your delivery time?
A: The general delivery time is 20-35 days after receiving your order confirmation. Anther, if we have the goods in stock, it will only take 1-2 days.
