Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Rubber Ceramic Liners
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Abrasion Resistance: |
High |
Chemical Resistance: |
Strong |
Corrosion Resistance: |
Excellent |
Density: |
3.6-3.8g/cm3 |
Elongation: |
≥250% |
Hardness: |
HRA85-90 |
Installation Method: |
Bolted Or Welded |
Material: |
Rubber Ceramic |
Service Life: |
Long-lasting |
Surface Finish: |
Smooth Or Textured |
Abrasion Resistance: |
High |
Chemical Resistance: |
Strong |
Corrosion Resistance: |
Excellent |
Density: |
3.6-3.8g/cm3 |
Elongation: |
≥250% |
Hardness: |
HRA85-90 |
Installation Method: |
Bolted Or Welded |
Material: |
Rubber Ceramic |
Service Life: |
Long-lasting |
Surface Finish: |
Smooth Or Textured |
Product Description

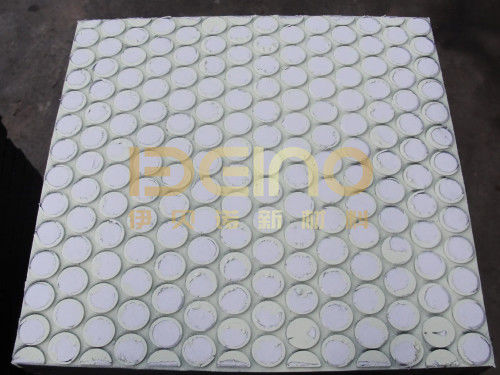

The ceramic composite rubber sheet is made of vulcanized ceramic on the rubber sheet. The traditional rubber roller is coated in an outdoor environment, and the surface texture is easily worn off by rain washing and belt abrasion. The new generation of ceramic roller lagging solves this problem.
Alumina ceramic technical parameters
| Items | Specifications |
| Content of alumina | ≥95% |
| Density | ≥3.8 g/cm3 |
| Rockwell A hardness | ≥85HRA |
| Impact strength | ≥1500 MPA |
| Fracture toughness | ≥4.0MPa·m1/2 |
| Bending Strength | ≥330MPa |
| Thermal conductivity | 20W/m.K |
| Thermal expansion coefficient | 7.2×10 6m/m.K |
| Volume wear | ≤0.02cm3 |
Rubber technical parameters
| Items | Specifications |
| Pull apart strength | ≥12MPa |
| Pull apart prolongation | 250％ |
| Shore hardness | 55 65 |
| Permanent deform | ≤24％ |
| The shared stress between the ceramic and rubber | ≥3.0MPa |
| Temperature resistance | ≤100℃ |
| The aging life of rubber | ≥15 years |
Product features of ceramic composite rubber sheet
1. Wear resistance: Alumina corundum ceramics, the hardness reaches HRA85 or more, and the wear resistance is 271.5 times that of manganese steel;
2. Impact resistance: unique design and high-quality buffer layer, which can resist the impact of bulk materials;
3. High-temperature resistance: It can be operated at 0℃ 250℃ for a long time;
4. Acid and alkali resistance: The rubber adopts a new formula of acid and alkali resistance rubber, which can resist weak acids and weak alkalis;
5. Anti-falling: The ceramic rubber steel plate is vulcanized in one piece, and the combination is very firm; each piece of ceramic has a penetrating bolt passing through the bottom steel plate, which is firmly welded, and double insurance;
6. Convenient installation and replacement: It is provided with a whole liner, which is convenient for replacement and installation and reduces after-sales service;
7. Reduce maintenance: super abrasion resistance greatly reduces the frequency of maintenance and saves labor costs
Our Advantages
The ceramic composite rubber sheet produced by the company mainly includes alumina and zirconia wear-resistant ceramic lining plates, ceramic rubber composite lining plates, three in one wear resistant ceramic lining plates,s, and other products, with wear resistance, impact resistance, high-temperature resistance, long-term operation between 0 ℃ and 250 ℃, acid and alkali resistance. The rubber adopts a new formula of acid and alkali-resistant rubber, which can resist weak acid and weak alkali, prevent falling off, and is easy to install and replace. The super wear resistance greatly reduces the maintenance frequency and saves the labor cost.
Product Application
Suitable for chutes and hoppers of bulk material conveying systems at room temperature
Our Service
The company provides high-quality, cost-effective products and a complete after-sales service system to serve customers wholeheartedly!
