Rectangular Ceramic Rubber Wear Blocks for Chute Linings

Rectangular Ceramic Rubber Wear Blocks for Chute Linings

Wear inside a transfer chute is not always uniform. Some sections experience continuous abrasion, while others show concentrated wear near material contact areas or transitions.

For selected areas, rectangular ceramic rubber wear blocks offer an alternative to covering the entire surface with large liner panels.

ELACERA supplies customized wear blocks with alumina ceramic tiles supported by a rubber composite body. ELACERA can adapt block dimensions and ceramic arrangement to equipment drawings.

A Different Format for Localized Wear Protection

Large wear panels are useful for broad, relatively flat surfaces. However, they may not suit every installation space.

Rectangular wear blocks offer a more compact format. Individual blocks can be arranged to cover a defined wear area.

This approach may be considered for selected chute surfaces, transfer sections and equipment locations with limited installation space.

The final arrangement should follow the actual wear pattern rather than simply covering every surface with the same material.

Ceramic Surface and Rubber Support

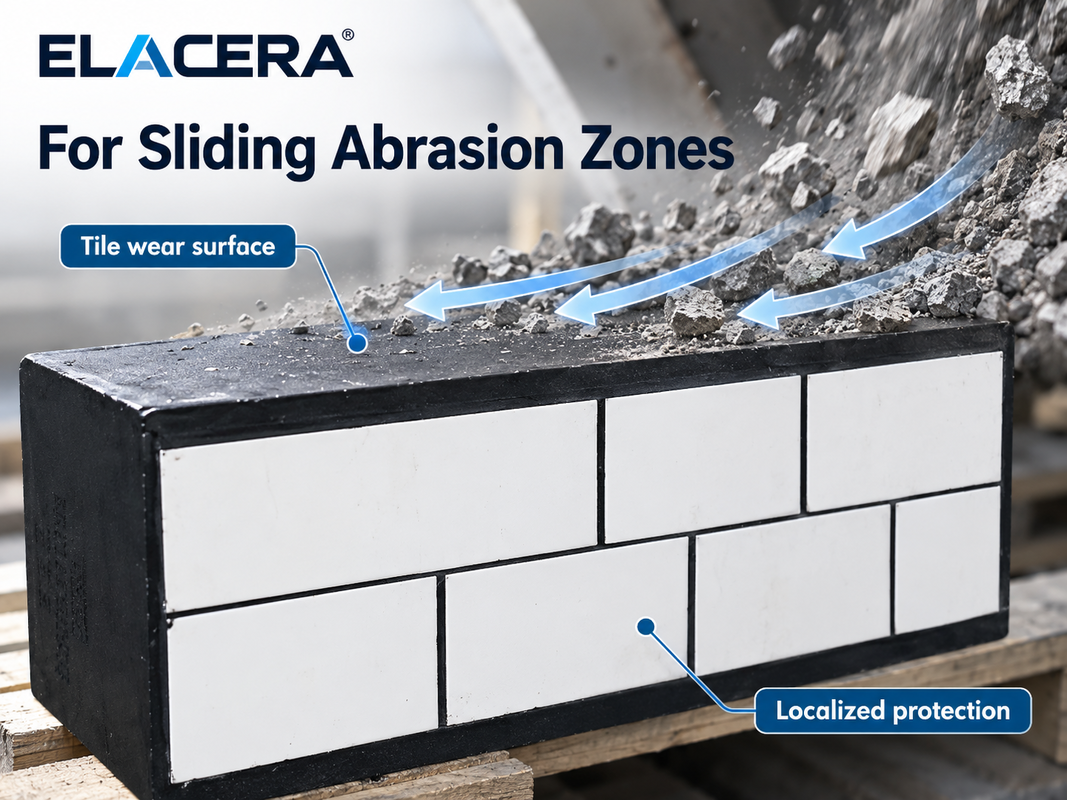

The wear-facing side contains rectangular alumina ceramic tiles.

The ceramic surface provides resistance to abrasive particle contact.

The rubber body supports the ceramic tiles and provides some cushioning against vibration and intermittent impact.

The two materials serve different functions. Their thickness and construction must be selected according to the operating conditions.

For severe direct impact from large falling rocks, additional design review is necessary. A rectangular tile structure is not automatically suitable for every impact zone.

Block Layout and Edge Protection

When several blocks are installed together, the transitions between them require attention.

Poor alignment or exposed edges may allow particles to attack the supporting material.

Important design considerations include:

• Material flow direction and wear location
• Ceramic coverage along exposed edges
• Block dimensions and installation clearance
• Gaps and height differences between adjacent blocks
• Backing and fixing requirements

A suitable block arrangement should protect the intended surface without creating unnecessary exposed joints.

Custom Manufacturing for Equipment Requirements

ELACERA can manufacture rectangular ceramic rubber wear blocks according to approved specifications.

The ceramic layout, block length, width, and overall thickness can be adjusted to the required design.

Before production, the ceramic grade, rubber construction, and installation method should be confirmed.

Finished products can be inspected for dimensions, ceramic placement, surface condition, and edge quality.

This helps customers receive wear components that match the agreed requirements.

Choosing the Right Wear Liner

Rectangular wear blocks, large ceramic rubber panels, and steel-backed bolt-on liners serve different installation needs.

The best option depends on the available space, material flow, impact conditions, and maintenance requirements.

Need Custom Ceramic Rubber Wear Blocks?

Send us your equipment drawings, wear photographs, and operating conditions.

ELACERA can review the block dimensions, ceramic arrangement, and installation requirements for your project.
