Anti Wear Impact Resistant Linings Custom Zirconia Ceramic Sheet

Product Details

Place of Origin: Changsha, Hunan, China

Brand Name: Ibeno

Certification: ISO9001-2015

Model Number: Rubber Ceramic Liners

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: Negotiable

Packaging Details: Packed in wooden cases or iron racks

Delivery Time: 25-45 workdas

Payment Terms: T/T

Supply Ability: 100,000 ㎡/ year

Get Best Price
Highlight:

Anti Wear Impact Resistant Linings

,

Custom Zirconia Ceramic Sheet

,

Anti Wear Zirconia Ceramic Sheet

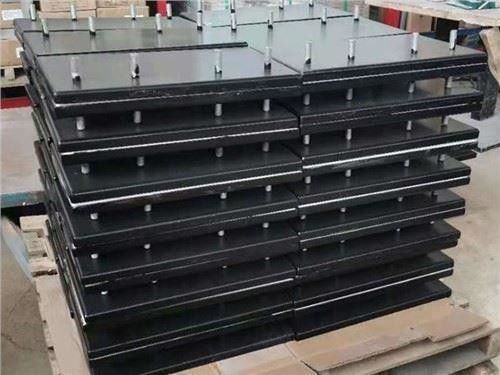

Anti Wear Impact Resistant Linings Custom Zirconia Ceramic Sheet

Product Description

Impact Resistant Linings refers to the composite of alumina corundum ceramics and steel plate. The ceramic is pasted on the steel plate with an adhesive in the middle. The back of the steel plate is equipped with countersunk bolts. The overall liner forms a strong and impact resistant anti wear layer. Solve the problem of abrasion of bulk materials in the conveying process, apply to the anti-wear of material conveying equipment in high-temperature environments, and resist the impact of bulk materials.

1624331092(1)

Alumina ceramic technical parameters

Items Specifications
Al2O3% ≥92%
Fe2O3% ≤0.20%
Mohs' hardness 9
Water Absorption (%) ≤0.02
Density(g/cm3) ≥3.60
Abrasion(%) ≤0.02

Products Feature

1. Wear resistance: Impact Resistant Linings is lined with alumina corundum ceramics, the hardness is above HRA88, and the wear resistance is 271.5 times that of manganese steel;

2. Impact resistance: unique design can resist the impact of bulk materials;

3. High temperature resistance: It can be operated at 0℃ 250℃ for a long time;

4. Acid and alkali resistance: The rubber adopts a new formula of acid and alkali resistance rubber, which can resist weak acids and weak alkalis;

5. Anti-falling: The ceramic steel plate is very firmly bonded with glue; each ceramic has a penetrating bolt passing through the bottom steel plate, which is firmly welded, double insurance;

6. Convenient installation and replacement: It is provided with a whole liner, which is convenient for replacement and installation and reduces after-sales service;

7. Reduce maintenance: The super abrasion resistance greatly reduces the frequency of maintenance and saves costs and labor.



Company Profile

Hunan Yibeinuo New Material Co., Ltd. has now formed: Impact Resistant Linings, resistant ceramic sheets, resistant ceramic liners, wear resistant ceramic composite pipe liners, wear resistant ceramic elbow (lithium battery elbow), resistant ceramic drum rubber encapsulation, overall equipment lining ceramics, ceramic pump tubes, ceramic transition sleeves and other eight series of products, mainly serving thermal power, cement, steel, ports, coal, ports, mineral processing, engineering machinery, sand making, etc. Industry, the company's products have high strength, wear resistance, corrosion resistance, and so on.





Perfect service system

We can customize the best and best anti-wear solutions for customers according to their on-site equipment usage conditions. To ensure the stable quality and super wear resistance of alumina ceramics, each product process is strictly checked and carried out before leaving the factory. Strict testing and quality inspection to ensure a 100% pass rate of each product before shipment.



FAQ

Q: What products can you make?

A: Wear resistant ceramic sheet, wear resistant ceramic liner (ceramic + rubber two in one liner, ceramic + steel plate two in one liner, ceramic + rubber + steel plate three in one-liner), wear resistant ceramic composite pipe liner, resistant Grinding ceramic elbow (lithium battery elbow), wear resistant ceramic roller encapsulation, overall equipment lining ceramic, ceramic pump tube, ceramic transition sleeve, etc.



Q: What are your payment terms?

A: T/T 30% as the deposit, The balance payment is paid in full before shipment



Q: How long is your delivery time?

A: The delivery time of customized products is generally 25 35 days, and noncustomized products are generally shipped within 24 hours after payment.



Q: Do you provide samples? Is it free?

A: If the value of the sample is low, we will provide it for free, but the freight needs to be paid by the customer. But for some high-value samples, we need to charge a fee.



Q: Why choose us?

A:1.Manufacturing experience: 15 years of industry experience, rich on-site practical experience, can provide the best and best anti wear solution according to the customer’s site

2. Installation and construction team: We have a construction team of 10 to 15 people, all with more than 10 years of construction experience

3. Quality assurance: All products have a strict quality inspection before shipment.

4. Price advantage: factory direct sales, competitive price.

5. Competitive production capacity and fast transportation.

6. Our company provides OEM service.





  •
