Product Details
Place of Origin: Changsha, Hunan, China
Brand Name: Ibeno
Certification: ISO9001-2015
Model Number: Rubber Ceramic Liners
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Packed in wooden cases or iron racks
Delivery Time: 25-45 workdas
Payment Terms: T/T
Supply Ability: 100,000 ㎡/ year
Abrasion Resistance: |
Superior |
Chemical Resistance: |
Excellent |
Compressive Strength: |
≥ 2000 MPa |
Corrosion Resistance: |
Excellent |
Elongation: |
≥250% |
Flexural Strength: |
≥ 300 MPa |
Installation Method: |
Adhesive Bonding |
Lining Thickness: |
6-50mm |
Lining Type: |
Ceramic |
Shape: |
Square |
Size: |
150x150mm |
Surface Finish: |
Smooth Or Textured |
Temperature Resistance: |
≤100℃ |
Tensile Strength: |
≥12 MPa |
Abrasion Resistance: |
Superior |
Chemical Resistance: |
Excellent |
Compressive Strength: |
≥ 2000 MPa |
Corrosion Resistance: |
Excellent |
Elongation: |
≥250% |
Flexural Strength: |
≥ 300 MPa |
Installation Method: |
Adhesive Bonding |
Lining Thickness: |
6-50mm |
Lining Type: |
Ceramic |
Shape: |
Square |
Size: |
150x150mm |
Surface Finish: |
Smooth Or Textured |
Temperature Resistance: |
≤100℃ |
Tensile Strength: |
≥12 MPa |
Product Description

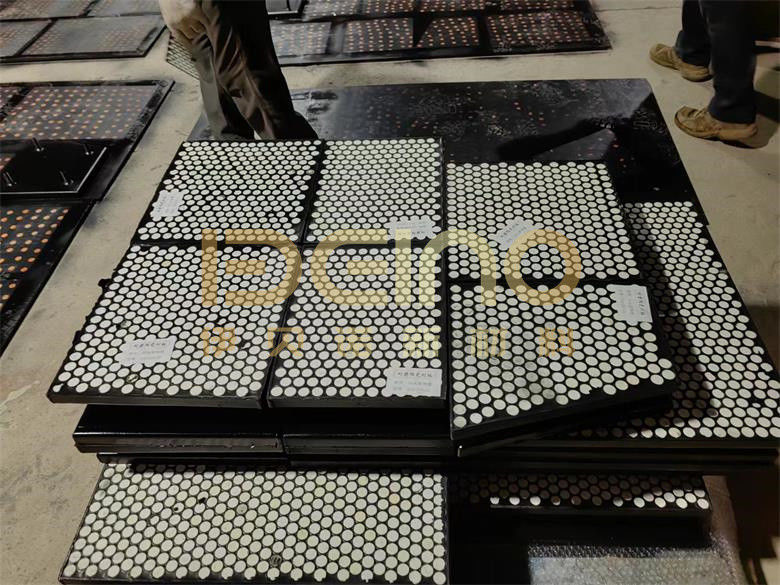

The wear-resistant ceramic liner is made of ceramic and rubber using a thermal vulcanization process to vulcanize the wear-resistant ceramic and rubber together. Even if the vulcanized product is artificially bent 360 degrees, the ceramic will not fall off from the rubber.
Alumina ceramic technical parameters
| Items | Specifications |
| Content of alumina | ≥95% |
| Density | ≥3.8 g/cm3 |
| Rockwell A hardness | ≥85HRA |
| Impact strength | ≥1500 MPA |
| Fracture toughness | ≥4.0MPa·m1/2 |
| Bending Strength | ≥330MPa |
| Thermal conductivity | 20W/m.K |
| Thermal expansion coefficient | 7.2×10 6m/m.K |
| Volume wear | ≤0.02cm3 |
Rubber technical parameters
| Items | Specifications |
| Pull apart strength | ≥12MPa |
| Pull apart prolongation | 250％ |
| Shore hardness | 55 65 |
| Permanent deform | ≤24％ |
| The shared stress between the ceramic and rubber | ≥3.0MPa |
| Temperature resistance | ≤100℃ |
| The aging life of rubber | ≥15 years |
Company Profile
Yibeinuo New Material is a national high-tech manufacturing enterprise integrating R&D, design, manufacturing, and technical services in domestic wear resistant ceramics. It has a certain influence in the domestic wear resistant industry. Its products are widely used in steel, cement, coal, and ports. , Chemical, lithium battery, mineral processing, engineering machinery, and other industries, are exported to Southeast Asia, Korea, Japan, Australia, Europe and the United States and other countries, and are well received by users at home and abroad. Wear resistant ceramic liners are widely used because of their simple installation and good wear resistance!
Product certification
Wear resistant ceramic liner products have passed ISO90001 quality system certification and ISO14000 environmental management system certification. Products from R&D, design, production, and installation are included in the ISO quality management system. Strict quality inspection is carried out before the products leave the factory to ensure that the quality of the products is 100%.
Production Market
With more than ten years of industry experience accumulated in the wear resistant ceramic industry, the company exports to many countries, including the United States, Germany, Australia, South Korea, Japan, and Southeast Asian countries.
